Samsung Announces The Next Generation NX20, NX210 and NX1000
The world’s first Wi-Fi-enabled compact system cameras deliver both quality and connectivity
London, UK,– April 19, – Samsung Electronics Co., Ltd, a global leader in digital media and digital convergence technologies, today unveiled three new additions to its award-winning NX range: the NX20, NX210, and NX1000.
The new models are the first compact system cameras to deliver complete Wi-Fi connectivity, representing the future in CSC technology: SMART devices with in-built Wi-Fi, allowing users to connect to wireless networks without any additional cards or devices. This is complemented by an impressive range of features that continue the heritage of innovation that the NX series has been consistently recognised for, since the launch of the NX10 in 2010.
Introducing the NX20 (above), NX210 and NX1000
The NX20 and its sister models set a new standard in the definitive image quality that the NX series is known for. Each model boasts a 20.3MP APS-C CMOS sensor, developed in-house by Samsung for outstanding accuracy in colour and reduced noise levels. Combined with a wide range ISO (100-12800), the new models enable the capturing of clean and colour-rich images, even in low-light conditions.
The imaging capability of each model is coupled with high-speed functioning and responsiveness. The speed of the NX20 is a key advantage, boasting a shutter speed of 1/8000 sec to enable clear shots of action-filled settings. With 1080p Full HD Stereo Movie Recording (H.264), the new NX models also guarantee high-quality video alongside DSLR-standard images.
To complete Samsung’s 2012 SMART CAMERA ecosystem, these latest additions to the NX range have been designed to satisfy the ambitions of users. Regardless of their photographic abilities, whether an experienced professional or someone looking to trade-up from their point-and-shoot camera.
The NX20 is built for the enthusiastic amateur or for the professional photographer looking for a camera that offers them the quality and control of their DSLR, but in a lightweight and easily portable body. It has been designed with the serious photographer in mind, incorporating an ergonomic hand grip and DSLR-style aesthetic to convey a professional look and feel.
To allow for precision framing and focusing, the NX20 incorporates both an SVGA EVF and a 3.0” Clear AMOLED swivel display, the latter delivering approximately 20% more visibility, giving photographers a host of options when framing their shots.
As standard across the range, the NX20 is also compatible with Samsung’s innovative i-Function 2.0 lens system. This enables users to control parameters using the lens itself, adjusting the image without moving from the subject. Samsung’s eco-system of professional-quality accessories includes nine bespoke i-Function 2.0 lenses, ranging from pancake to macro, providing pro-standard options for every scenario.

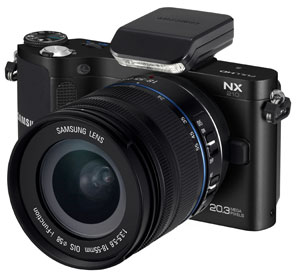

The NX210 builds on the NX’s design heritage, with a premium metallic finish. Like its predecessor the NX200, the NX210 also offers a 3.0” VGA AMOLED display for viewing images and Full HD movies in brilliant resolution. With easy access to Wi-Fi functions, the NX210 allows quick sharing with friends and family, whilst with Samsung Mobile Link users can show off their best images on phones and tablets.
Rounding off the range, the NX1000 is highly portable and its eye-catching compact design makes it as useable as it is attractive. Available in stunning White, classic Black and eye-catching Pink the NX1000 houses a feature-rich range of specs, with technology such as Smart Auto 2.0 and the Smart Link Hot Key, making it simpler than ever to shoot and share great images instantly.
Wi-Fi SMART connectivity
The first CSC range to incorporate Wi-Fi SMART features, the new cameras enable photographers to instantly share and back up both images and video. On all of the new NX models, sharing to social networks such as Facebook directly from the device is simple, as is sending to friends and family via email. Images can also be shared between devices, including the ability to wirelessly share to a Samsung smartphone or tablet using Mobile Link. For viewing on internet-enabled TVs the TV Link function makes it easy to see stunning images on the big screen.
Storage issues are also solved effectively through the use of Wi-Fi, which allows users to clear storage space and back up their pictures for safekeeping through saving to either of two different Cloud services or by using Auto Backup.
The NX series is the only CSC range that ensures images no longer languish in the camera but can be shared effortlessly with the world.
Creative control at the touch of a button
Pictures shared on the spur of the moment are no longer restricted to simply shooting and sending - with the creative features of the new NX cameras, Facebook pictures can be artistic without ever going near a computer. The ten Smart Filters and added Selective Colour function, for example, mean that users can adjust the look and feel of shots as they take them. In addition, all three cameras also feature Panorama and 3D Panorama, allowing the whole story to be told in one complete picture. With the Smart Panel featured on all the new models, settings and features can be easily accessed and applied, making creative photography easier than ever.
Nick White, Head of Digital Imaging, Samsung Electronics UK and Ireland, said “The launch of the SMART NX Range marks an evolution in Samsung’s camera offering. With the inclusion of built in Wi-Fi, sharing your pictures has never been so simple and with the NX image quality they will be worth sharing. We are delighted to be offering this innovation in technology to our customers.”
For more information, please visit www.samsung.com
Specifications
** This subjects to change without prior notice
NX1000 |
|
Category 1 |
Category 2 |
|
Image sensor |
Type |
CMOS |
Sensor size |
23.5x15.7mm |
Effective Pixel |
Approx. 20.3 Mega-pixels |
Total Pixel |
Approx. 21.6 Mega-pixels |
Color Filter |
RGB primary color filter |
Lens Mount |
Mount |
Samsung NX Mount |
Useable lens |
Samsung Lenses |
Image Stabilization |
Type |
Lens Shift (depends on Lens) |
Mode |
OIS Mode1 / Mode2 / OFF |
Distortion Correct |
LDC On / Off (depends on Lens) |
i-Function |
i-Effect |
i-Scene (depends on Lens) |
Smart Filter (Vignetting, Minature, Fish-Eye, Sketch, Defog, Halftone Dot) |
i-Zoom |
i-Zoom (x1.2, 1.4, 1.7, 2.0) |
Dust Reduction |
Type |
Supersonic drive |
Display |
Type |
TFT-LCD |
Size |
3.0" |
Resolution |
VGA ( 640X480 ) 921k dots |
Field of View |
Approx. 100% |
|
Angle |
Fixed |
|
Display |
Grid (4types), Histgram, Icons : On/Off, Distance Scale : ft / m / Off, Electronic Level |
Viewfinder |
|
N/A |
Focusing |
Type |
Contrast AF |
Focusing point |
Selection : 1point ( Free selection )
Multi : Normal 15points, Closeup 35points
Face Detection : Max. 10 faces |
Modes |
Single AF, Continuous AF, MF |
AF-assist Lamp |
Yes |
Shutter |
Type |
Electronically controlled vertical-run focal plane shutter |
Speed |
Auto:1/4000sec. ~ 30sec.
Manual:1/4000sec. ~ 30sec. (1/3EV step)
Bulb ( Limit time : 4min. ) |
Exposure |
Metering
System |
TTL 221(17x13) Block segment |
Metering : Multi, Center-weighted, Spot |
Metering range : EV 0-18 (ISO 100 · 30mm, F2) |
Compensation |
±3 EV (1/3EV step) |
AE Lock |
CUSTOM Key applicable |
ISO Equivalent |
Auto, 100, 200, 400, 800, 1600, 3200, 6400, 12800 (1 or 1/3EV step)
* AUTO ISO upper level is selectable. (Up to ISO3200) |
Drive Mode |
Modes |
Single, Continuous, Burst (5M size only), Self-timer, Bracket (AE/WB/PW) |
Continuous |
JPEG : High(8fps) up to 11 shots, Low(3fps) up to 15 shots selectable
Burst : 10, 15, 30fps selectable, 30 shots by 1 release
RAW : High(8fps), Low(3fps) selectable up to 8 shots |
Bracket |
Auto Exposure Bracket (±3EV), WB, PW |
Self-timer |
2 - 30sec. (1sec. step) |
Remote controler |
Wired : SR2NX02 (Optional) |
Flash |
Type |
External Flash only (Bundle with SEF8A) |
Modes |
Smart Flash, Auto, Auto+Red-eye reduction, Fill-in, Fill-in+Red-eye reduction, 1st Curtain, 2nd Curtain, Off |
Guide Number |
8 (at ISO 100) (SEF8A) |
Angle of View Coverage |
28mm wide-angle (Equivalent to 35mm) (SEF8A) |
Sync. Speed |
Less than 1/180sec. |
Flash Compensation |
-2 - +2EV (1/2EV step) |
External Flash |
Samsung External Flash available (SEF42A, SEF220A : Optional) |
Synchro (Flash attachment) |
Hot Shoe |
White Balance |
|
Auto, Daylight, Cloudy, Fluorescent (W, N, D), Tungsten, Flash, Custom, K(Manual) |
Micro adjustment |
each 7 steps in Amber / Blue / Green / Magenta axis |
Dynamic Range Expansion |
OFF / Smart Range |
Picture Wizard |
Modes |
Standard, Vivid, Portrait, Landscape, Forest, Retro, Cool, Calm, Classic, Custom (1~3) |
Parameter |
Contrast, Sharpness, Saturation, Color |
Shooting |
Modes |
SmartAuto(2.0), Program, Aperture Priority, Shutter Priority, Manual, Lens Priority, Magic, Scene, Movie, Wi-Fi |
Scene Mode |
Panorama (Live, 3D), Beauty shot, Night, Landscape, Portrait, Children, Sports, Close-Up, Text, Sunset, Dawn, Backlight, Fireworks, Beach & Snow, 3D Photo |
Smart Filter |
Vignetting, Miniature, Fish-Eye, Sketch, De-fog, Halftone Dots, Soft Focus,
Old Film1, Old Film2, Negative, Selective Color (4 Color Modes) |
Magic Frame |
Old Album, Old Film, Wave, Full Moon, Old Record, Magazine, Sunny Day, Classic TV, Wall Art, Holiday, Billboard 1, Billboard 2, Newspaper |
Image Size |
JPEG (3:2):20.0M (5472x3648), 10.1M (3888x2592), 5.9M (2976x1984), 2.0M (1728x1152), 5.0M (2736x1824): Burst mode only
JPEG (16:9):16.9M (5472x3080), 7.8M (3712x2088), 4.9M (2944x1656), 2.1M (1920x1080)
JPEG (1:1):13.3M (3648x3648), 7.0M (2640x2640), 4.0M (2000x2000), 1.1M (1024x1024)
RAW : 20.0M (5472x3648) |
Quality |
Super fine , Fine, Normal |
RAW Format |
SRW |
Color Space |
sRGB, Adobe RGB |
Movie |
Format |
MP4 (H.264) |
Compression |
Movie : H.264 , Sound : AAC |
Modes |
Program, Aperture Priority, Shutter Priority, Manual |
Movie Clip |
With Audio or without Audio
(user selectable, recording time : 25 minutes) |
Smart Filter |
Vignetting, Miniature, Fish-Eye, Sketch, De-fog, Halftone Dots, Soft Focus,
Old Film1, Old Film2, Negative |
Image size |
1920x1080, 1920x810, 1280x720 , 640x480, 320x240 for Sharing (Default : 1920x1080) |
Frame rate |
30fps, 24fps(1920x810 Only) |
Multi-Motion Recording |
x0.25 (640, 320 only), x0.5 (1280, 640, 320 only), x5, x10, x20 |
Quality |
High Quality , Normal |
Sound |
Stereo Sound |
Movie Editing |
Still Image Capture, Time Trimming |
Image Play |
Type |
Single image, Thumbnails (3/15/40 images), Slide show, Movie |
Editing |
Smart Filter, Red-eye fix, Backlight., Resize, Rotate, Face Retouch, Brightness, Contrast, Vignetting |
Smart Filter |
Miniature, Soft Focus, Old Film1, Old Film2,, Halftone Dots, Sketch, Fish-Eye, De-fog Negative |
|
<Size>
JPEG (3:2):5.9M (2976x1984), 5.0M (2736x1824), 2.0M (1728x1152)
JPEG (16:9):6.2M (3328x1872), 4.9M (2944x1656), 2.1M (1920x1080)
JPEG (1:1): 6.0M (2448x2448), 4.0M (2000x2000), 1.1M (1024x1024) |
Storage |
Media |
SD, SDHC, SDXC (guarantee up to 128GB) |
File format |
RAW (SRW), JPEG (EXIF 2.21), DCF, DPOF 1.1, PictBridge 1.0 |
Capacity (2GB) |
20.0M : RAW 53
20.0M (3:2) : Super Fine 186, Fine 364, Normal 535
10.1M (3:2) : Super Fine 378, Fine 724, Normal 1043
5.9M (3:2) : Super Fine 626, Fine 1168, Normal 1642
2.0M (3:2) : Super Fine 1627, Fine 2742, Normal 3553
Burst (5.0M) : Super Fine 731, Fine 1349, Normal 1878
16.9M (16:9) : Super Fine 230, Fine 448, Normal 655
7.8M (16:9) : Super Fine 485, Fine 919, Normal 1310
4.9M (16:9) : Super Fine 747, Fine 1376, Normal 1912
2.1M (16:9) : Super Fine 1573, Fine 2666, Normal 3468
13.3M (1:1) : Super Fine 289, Fine 560, Normal 814
7.0M (1:1) : Super Fine 536, Fine 1010, Normal 1432
4.0M (1:1) : Super Fine 893, Fine 1621, Normal 2224
1.1M (1:1) : Super Fine 2645, Fine 4057, Normal 4936
Movie : 1920x1080 30p : High Quality 17m 45s, Normal 22m 09s
1920x810 24p : High Quality 74m 08s, Normal 91m 51s
1280x720 30p : High Quality 29m 26s, Normal 36m 41s
640x480 30p : High Quality 74m 08s, Normal 91m 51s
320x240 30p : High Quality 238m 30s, Normal 289m 55s
※ These figures are measure under the Samsung standard. |
Languages |
17 Languages (Korean, English, Danish, German, Dutch, Swedish, Spanish, Italian, Czech, French, Portuguese, Polish, Finnish, Russian, Norsk, Simplified/Traditional Chinese) |
Direct Printing |
|
PictBridge |
GPS |
Type ( Specification ) |
Geo-tagging w/ Optional GPS Module (WGS84) |
Function |
-Location Name(OSD) (English and Korean only)
-Google Map Link (with intelli-Studio) |
Wi-Fi |
|
IEEE 802.11n support
(Smartphone-Link Button Support)
. Mobile Link
. Remote Viewfinder
. Social Sharing
. Email
. Cloud (SkyDrive)
. Auto Backup
. TV Link
. Wi-Fi Direct |
Interface |
Digital Output Connector |
USB 2.0 (HI-SPEED) (micro USB Jack) |
Video output |
NTSC, PAL (user selectable)
HDMI 1.4a : (1080i, 720P, 576P / 480P) |
External Release |
Yes |
External Mic |
Yes |
Power
Source |
Type |
Rechargeable battery : BP1030 (1030mAh)
Charger: BC1030 |
Battery life |
165min / 320shots (CIPA Standard) |
Physical
Specification |
Dimensions (WxHxD) |
114 x 62.5 x 37.5mm (excluding the projection part) |
Weight |
222g (without battery and memroy card) |
Operating Temperature |
0 ~ 40 °C |
Operating Humidity |
5 ~ 85% |
Software |
Application |
intelli-studio 3.0, Samsung RAW Converter 4, PC Auto Backup |
Adobe Reader |
NX210 |
|
Category 1 |
Category 2 |
|
Image sensor |
Type |
CMOS |
Sensor size |
23.5x15.7mm |
Effective Pixel |
Approx. 20.3 Mega-pixels |
Total Pixel |
Approx. 21.6 Mega-pixels |
Color Filter |
RGB primary color filter |
Lens Mount |
Mount |
Samsung NX Mount |
Useable lens |
Samsung Lenses |
Image Stabilization |
Type |
Lens Shift (depends on Lens) |
Mode |
OIS Mode1 / Mode2 / OFF |
Distortion Correct |
LDC On / Off (depends on Lens) |
i-Function |
i-Effect |
i-Scene (depends on Lens) |
Smart Filter (Vignetting, Minature, Fish-Eye, Sketch, Defog, Halftone Dot) |
i-Zoom |
i-Zoom (x1.2, 1.4, 1.7, 2.0) |
Dust Reduction |
Type |
Supersonic drive |
Display |
Type |
AMOLED |
Size |
3.0" |
Resolution |
VGA ( 640X480 ) 614k dots ( PenTile ) |
Field of View |
Approx. 100% |
|
Angle |
Fixed |
|
Display |
Grid (4types), Histgram, Icons : On/Off, Distance Scale : ft / m / Off, Electronic Level |
Viewfinder |
Type |
N/A |
Focusing |
Type |
Contrast AF |
Focusing point |
Selection : 1point ( Free selection )
Multi : Normal 15points, Closeup 35points
Face Detection : Max. 10 faces |
Modes |
Single AF, Continuous AF, MF |
AF-assist Lamp |
Yes |
Shutter |
Type |
Electronically controlled vertical-run focal plane shutter |
Speed |
Auto:1/4000sec. ~ 30sec.
Manual:1/4000sec. ~ 30sec. (1/3EV step)
Bulb ( Limit time : 4min. ) |
Exposure |
Metering
System |
TTL 221(17x13) Block segment |
Metering : Multi, Center-weighted, Spot |
Metering range : EV 0-18 (ISO 100 · 30mm, F2) |
Compensation |
±3 EV (1/3EV step) |
AE Lock |
CUSTOM Key applicable |
ISO Equivalent |
Auto, 100, 200, 400, 800, 1600, 3200, 6400, 12800 (1 or 1/3EV step)
* AUTO ISO upper level is selectable. (Up to ISO3200) |
Drive Mode |
Modes |
Single, Continuous, Burst (5M size only), Self-timer, Bracket (AE/WB/PW) |
Continuous |
JPEG : High(8fps) up to 11 shots, Low(3fps) up to 15 shots selectable
Burst : 10, 15, 30fps selectable, 30 shots by 1 release
RAW : High(8fps), Low(3fps) selectable up to 8 shots |
Bracket |
Auto Exposure Bracket (±3EV), WB, PW |
Self-timer |
2 - 30sec. (1sec. step) |
Remote controler |
Wired : SR2NX02 (Optional) |
Flash |
Type |
External Flash only (Bundle with SEF8A) |
Modes |
Smart Flash, Auto, Auto+Red-eye reduction, Fill-in, Fill-in+Red-eye reduction, 1st Curtain, 2nd Curtain, Off |
Guide Number |
8 (at ISO 100) (SEF8A) |
Angle of View Coverage |
28mm wide-angle (Equivalent to 35mm) (SEF8A) |
Sync. Speed |
Less than 1/180sec. |
Flash Compensation |
-2 - +2EV (1/2EV step) |
External Flash |
Samsung External Flash available (SEF42A, SEF220A : Optional) |
Synchro (Flash attachment) |
Hot Shoe |
White Balance |
|
Auto, Daylight, Cloudy, Fluorescent (W, N, D), Tungsten, Flash, Custom, K(Manual) |
Micro adjustment |
each 7 steps in Amber / Blue / Green / Magenta axis |
Dynamic Range Expansion |
OFF / Smart Range |
Picture Wizard |
Modes |
Standard, Vivid, Portrait, Landscape, Forest, Retro, Cool, Calm, Classic, Custom (1~3) |
Parameter |
Contrast, Sharpness, Saturation, Color |
Shooting |
Modes |
SmartAuto(2.0), Program, Aperture Priority, Shutter Priority, Manual, Lens Priority, Magic, Scene, Movie, Wi-Fi |
Scene Mode |
Panorama (Live, 3D), Beauty shot, Night, Landscape, Portrait, Children, Sports, Close-Up, Text, Sunset, Dawn, Backlight, Fireworks, Beach & Snow, Sound Picture, 3D Photo |
Sound Picture |
JPEG Only |
Sound Recording Time ( Before and after shooting each 5sec or 10sec ) |
Smart Filter |
Vignetting, Miniature, Fish-Eye, Sketch, De-fog, Halftone Dots, Soft Focus,
Old Film1, Old Film2, Negative, Selective Color (4 Color Modes) |
Magic Frame |
Old Album, Old Film, Wave, Full Moon, Old Record, Magazine, Sunny Day, Classic TV, Wall Art, Holiday, Billboard 1, Billboard 2, Newspaper |
Image Size |
JPEG (3:2):20.0M (5472x3648), 10.1M (3888x2592), 5.9M (2976x1984), 2.0M (1728x1152), 5.0M (2736x1824): Burst mode only
JPEG (16:9):16.9M (5472x3080), 7.8M (3712x2088), 4.9M (2944x1656), 2.1M (1920x1080)
JPEG (1:1):13.3M (3648x3648), 7.0M (2640x2640), 4.0M (2000x2000), 1.1M (1024x1024)
RAW : 20.0M (5472x3648) |
Quality |
Super fine , Fine, Normal |
RAW Format |
SRW |
Color Space |
sRGB, Adobe RGB |
Movie |
Format |
MP4 (H.264) |
Compression |
Movie : H.264 , Sound : AAC |
Modes |
Program, Aperture Priority, Shutter Priority, Manual |
Movie Clip |
With Audio or without Audio
(user selectable, recording time : 25 minutes) |
Smart Filter |
Vignetting, Miniature, Fish-Eye, Sketch, De-fog, Halftone Dots, Soft Focus,
Old Film1, Old Film2, Negative |
Image size |
1920x1080, 1920x810, 1280x720 , 640x480, 320x240 for Sharing (Default : 1920x1080) |
Frame rate |
30fps, 24fps(1920x810 Only) |
Multi-Motion Recording |
x0.25 (640, 320 only), x0.5 (1280, 640, 320 only), x5, x10, x20 |
Quality |
High Quality , Normal |
Sound |
Stereo Sound |
Movie Editing |
Still Image Capture, Time Trimming |
Image Play |
Type |
Single image, Thumbnails (3/15/40 images), Slide show, Movie |
Editing |
Smart Filter, Red-eye fix, Backlight., Resize, Rotate, Face Retouch, Brightness, Contrast, Vignetting |
Smart Filter |
Miniature, Soft Focus, Old Film1, Old Film2,, Halftone Dots, Sketch, Fish-Eye, De-fog Negative |
|
<Size>
JPEG (3:2):5.9M (2976x1984), 5.0M (2736x1824), 2.0M (1728x1152)
JPEG (16:9):6.2M (3328x1872), 4.9M (2944x1656), 2.1M (1920x1080)
JPEG (1:1): 6.0M (2448x2448), 4.0M (2000x2000), 1.1M (1024x1024) |
Storage |
Media |
SD, SDHC, SDXC (guarantee up to 128GB) |
File format |
RAW (SRW), JPEG (EXIF 2.21), DCF, DPOF 1.1, PictBridge 1.0 |
Capacity (2GB) |
20.0M : RAW 53
20.0M (3:2) : Super Fine 186, Fine 364, Normal 535
10.1M (3:2) : Super Fine 378, Fine 724, Normal 1043
5.9M (3:2) : Super Fine 626, Fine 1168, Normal 1642
2.0M (3:2) : Super Fine 1627, Fine 2742, Normal 3553
Burst (5.0M) : Super Fine 731, Fine 1349, Normal 1878
16.9M (16:9) : Super Fine 230, Fine 448, Normal 655
7.8M (16:9) : Super Fine 485, Fine 919, Normal 1310
4.9M (16:9) : Super Fine 747, Fine 1376, Normal 1912
2.1M (16:9) : Super Fine 1573, Fine 2666, Normal 3468
13.3M (1:1) : Super Fine 289, Fine 560, Normal 814
7.0M (1:1) : Super Fine 536, Fine 1010, Normal 1432
4.0M (1:1) : Super Fine 893, Fine 1621, Normal 2224
1.1M (1:1) : Super Fine 2645, Fine 4057, Normal 4936
Movie : 1920x1080 30p : High Quality 17m 35s, Normal 21m 56s
1920x810 24p : High Quality 19m 00s, Normal 23m 43s
1280x720 30p : High Quality 29m 10s, Normal 36m 20s
640x480 30p : High Quality 73m 26s, Normal 91m 00s
320x240 30p : High Quality 236m 16s, Normal 287m 12s
※ These figures are measure under the Samsung standard. |
Languages |
17 Languages (Korean, English, Danish, German, Dutch, Swedish, Spanish, Italian, Czech, French, Portuguese, Polish, Finnish, Russian, Norsk, Simplified/Traditional Chinese) |
Direct Printing |
|
PictBridge |
GPS |
Type ( Specification ) |
Geo-tagging w/ Optional GPS Module (WGS84) |
Function |
-Location Name(OSD) (English and Korean only)
-Google Map Link (with intelli-Studio) |
Wi-Fi |
|
IEEE 802.11n support
. Mobile Link
. Remote Viewfinder
. Social Sharing
. Email
. Cloud
. Auto Backup
. TV Link
. Wi-Fi Direct |
Interface |
Digital Output Connector |
USB 2.0 (HI-SPEED) (micro USB Jack) |
Video output |
NTSC, PAL (user selectable)
HDMI 1.4a : (1080i, 720P, 576P / 480P) |
External Release |
Yes |
External Mic |
Yes |
Power
Source |
Type |
Rechargeable battery : BP1030 (1030mAh)
Charger: BC1030 |
Battery life |
165min / 320shots (CIPA Standard) |
Physical
Specification |
Dimensions (WxHxD) |
116.5 x 62.5 x 36.6mm (excluding the projection part) |
Weight |
222.2g (without battery and memroy card) |
Operating Temperature |
0 ~ 40 °C |
Operating Humidity |
5 ~ 85% |
Software |
Application |
intelli-studio 3.0, Samsung RAW Converter 4, PC Auto Backup |
Adobe Reader |
NX20 |
|
Category 1 |
Category 2 |
|
Image sensor |
Type |
CMOS |
Sensor size |
23.5x15.7mm |
Effective Pixel |
Approx. 20.3 Mega-pixels |
Total Pixel |
Approx. 21.6 Mega-pixels |
Color Filter |
RGB primary color filter |
Lens Mount |
Mount |
Samsung NX Mount |
Useable lens |
Samsung Lenses |
Image Stabilization |
Type |
Lens Shift (depends on Lens) |
Mode |
OIS Mode1 / Mode2 / OFF |
Distortion Correct |
LDC On / Off (depends on Lens) |
i-Function |
i-Effect |
i-Scene (depends on Lens) |
Smart Filter (Vignetting, Minature, Fish-Eye, Sketch, Defog, Halftone Dot) |
i-Zoom |
i-Zoom (x1.2, 1.4, 1.7, 2.0) |
Dust Reduction |
Type |
Supersonic drive |
Display |
Type |
AMOLED |
Size |
3.0" |
Resolution |
VGA ( 640X480 ) 614k dots ( PenTile ) OCR |
Field of View |
Approx. 100% |
|
Angle |
Swivel / Horizontal : 180degree, Vertical : 270degree |
|
Display |
Grid (4types), Histgram, Icons : On/Off, Distance Scale : ft / m / Off, Electronic Level |
Viewfinder |
Type |
EVF w/ Eye Contact Sensor |
Resolution |
SVGA (800 x 600) |
Field of view |
Approx.100% |
Magnification |
Approx. 1.04X (APS-C、50mm、-1m-1), Approx. 0.68X (Equivalent to a 50mm lens on a 35mm camera) |
Eyepoint |
Approx. 18.0mm |
Diopter Adjustment |
Approx. -4.0 ~ +4.0m-1 |
Focusing |
Type |
Contrast AF |
Focusing point |
Selection : 1point ( Free selection )
Multi : Normal 15points, Closeup 35points
Face Detection : Max. 10 faces |
Modes |
Single AF, Continuous AF, MF |
AF-assist Lamp |
Yes |
Shutter |
Type |
Electronically controlled vertical-run focal plane shutter |
Speed |
Auto:1/8000sec. ~ 30sec. (w/ E-Shutter)
Manual:1/8000sec. ~ 30sec. (w/ E-Shutter, 1/3EV step)
Bulb ( Limit time : 4min.) |
Exposure |
Metering
System |
TTL 221(17x13) Block segment |
Metering : Multi, Center-weighted, Spot |
Metering range : EV 0-18 (ISO 100 · 30mm, F2) |
Compensation |
±3 EV (1/3EV step) |
AE Lock |
AEL button |
ISO Equivalent |
Auto, 100, 200, 400, 800, 1600, 3200, 6400, 12800 (1 or 1/3EV step)
* AUTO ISO upper level is selectable. (Up to ISO3200) |
Drive Mode |
Modes |
Single, Continuous, Burst (5M size only), Self-timer, Bracket (AE/WB/PW) |
Continuous |
JPEG : High(8fps) up to 11 shots, Low(3fps) up to 15 shots selectable
Burst : 10, 15, 30fps selectable, 30 shots by 1 release
RAW : High(8fps), Low(3fps) selectable up to 8 shots |
Bracket |
Auto Exposure Bracket (±3EV), WB, PW |
Self-timer |
2 - 30sec. (1sec. step) |
Remote controler |
SR2NX02 (via Micro USB port) |
Flash |
Type |
TTL Auto Pop-up flash |
Modes |
Smart Flash, Auto, Auto+Red-eye reduction, Fill-in, Fill-in+Red-eye reduction, 1st Curtain, 2nd Curtain, OFF |
Guide Number |
11(at ISO 100) |
Angle of View Coverage |
28mm wide-angle (Equivalent to 35mm) |
Sync. Speed |
Less than 1/180sec. |
Flash Compensation |
-2 - +2EV (0.5EV step) |
External Flash |
Samsung External Flash available (SEF-42A, SEF220A : Optional) |
Synchro (Flash attachment) |
Hot Shoe |
White Balance |
|
Auto, Daylight, Cloudy, Fluorescent (W, N, D), Tungsten, Flash, Custom, K(Manual) |
Micro adjustment |
each 7 steps in Amber / Blue / Green / Magenta axis |
Dynamic Range Expansion |
OFF / Smart Range |
Picture Wizard |
Modes |
Standard, Vivid, Portrait, Landscape, Forest, Retro, Cool, Calm, Classic, Custom (1~3) |
Parameter |
Contrast, Sharpness, Saturation, Color |
Shooting |
Modes |
SmartAuto(2.0), Program, Aperture Priority, Shutter Priority, Manual, Custom, Lens Priority,Scene, Movie, Wi-Fi |
Scene Mode |
Live Panorama (2d, 3D), Beauty Shot, Night, Landscape, Portrait, Children, Sports, Close Up, Text, Sunset, Dawn, Backlight, Fireworks, Beach&Snow, Sound Picture, 3D Photo |
Sound Picture |
JPEG Only |
Sound Recording Time ( Before and after shooting each 5sec or 10sec ) |
Smart Filter |
Vignetting, Miniature, Fish-Eye, Sketch, De-fog, Halftone Dots, Soft Focus,
Old Film1, Old Film2, Negative, Selective Color (R,G,B,Y) |
Magic Frame |
NA |
Image Size |
JPEG (3:2):20.0M (5472x3648), 10.1M (3888x2592), 5.9M (2976x1984), 2.0M (1728x1152), 5.0M (2736x1824): Burst mode only
JPEG (16:9):16.9M (5472x3080), 7.8M (3712x2088), 4.9M (2944x1656), 2.1M (1920x1080)
JPEG (1:1):13.3M (3648x3648), 7.0M (2640x2640), 4.0M (2000x2000), 1.1M (1024x1024)
RAW : 20.0M (5472x3648) |
Quality |
Super fine , Fine, Normal |
RAW Format |
SRW (Compressed) |
Color Space |
sRGB, Adobe RGB |
Movie |
Format |
MP4 (H.264) |
Compression |
Movie : H.264 , Sound : AAC |
Modes |
Program, Aperture Priority, Shutter Priority, Manual |
Movie Clip |
With Audio or without Audio
(user selectable, recording time : 25 minutes) |
Smart Filter |
Vignetting, Miniature, Fish-Eye, Sketch, De-fog, Halftone Dots, Soft Focus,
Old Film1, Old Film2, Negative |
Image size |
1920x1080, 1920x810, 1280x720 , 640x480, 320x240 for Sharing (Default : 1920x1080) |
Frame rate |
30fps, 24fps(1920x810 Only) |
Multi-Motion Recording |
x0.25 (640, 320 only), x0.5 (1280, 640, 320 only), x5, x10, x20 |
Quality |
High Quality , Normal |
Sound |
Stereo Sound |
Movie Editing |
Still Image Capture, Time Trimming |
Image Play |
Type |
Single image, Thumbnails (3/15/40 images), Slide show, Movie |
Editing |
Smart Filter, Red-eye fix, Backlight., Resize, Rotate, Face Retouch, Brightness, Contrast, Vignetting |
Smart Filter |
Miniature, Soft Focus, Old Film1, Old Film2,, Halftone Dots, Sketch, Fish-Eye, De-fog Negative |
|
<Size>
JPEG (3:2):5.9M (2976x1984), 5.0M (2736x1824), 2.0M (1728x1152)
JPEG (16:9):6.2M (3328x1872), 4.9M (2944x1656), 2.1M (1920x1080)
JPEG (1:1): 6.0M (2448x2448), 4.0M (2000x2000), 1.1M (1024x1024) |
Photo Style Selector |
- |
Storage |
Media |
SD, SDHC, SDXC (guarantee up to 128GB) |
File format |
RAW (SRW), JPEG (EXIF 2.21), DCF, DPOF 1.1, PictBridge 1.0 |
Capacity (2GB) |
20.0M RAW : Super Fine 37, Fine 47, Normal 51
20.0M (3:2) : Super Fine 186, Fine 365, Normal 537
10.1M (3:2) : Super Fine 397, Fine 727, Normal 1047
5.9M (3:2) : Super Fine 628, Fine 1172, Normal 1648
2.0M (3:2) : Super Fine 1633, Fine 2752, Normal 3566
Burst (5.0M) : Super Fine 733, Fine 1354, Normal 1885
16.9M (16:9) : Super Fine 230, Fine 450, Normal 658
7.8M (16:9) : Super Fine 487, Fine 922, Normal 1314
4.9M (16:9) : Super Fine 749, Fine 1381, Normal 1920
2.1M (16:9) : Super Fine 1579, Fine 2675, Normal 3481
13.3M (1:1) : Super Fine 290, Fine 562, Normal 817
7.0M (1:1) : Super Fine 538, Fine 1014, Normal 1437
4.0M (1:1) : Super Fine 897, Fine 1627, Normal 2232
1.1M (1:1) : Super Fine 2654, Fine 4072, Normal 4954
Movie : 1920x1080 30p : High Quality 17m 35s, Normal 21m 56s
1920x810 24p : High Quality 19m 0s, Normal 23m 43s
1280x720 60p : High Quality 20m 16s, Normal 25m 17s
1280x720 30p : High Quality 29m 10s, Normal 36m 20s
640x480 30p : High Quality 73m 26s, Normal 91m 0s
320x240 30p : High Quality 236m 16s, Normal 287m 12s
※ These figures are measure under the Samsung standard. |
Languages |
17 Languages (Korean, English, Danish, German, Dutch, Swedish, Spanish, Italian, Czech, French, Portuguese, Polish, Finnish, Russian, Norsk, Simplified/Traditional Chinese) |
Direct Printing |
|
PictBridge |
GPS |
Type ( Specification ) |
Geo-tagging w/ Optional GPS Module (WGS84) |
Function |
-Location Name(OSD) (English and Korean only)
-Google Map Link (with intelli-Studio) |
Wi-Fi |
|
IEEE 802.11n support
. Cloud
. Email
. Auto Backup
. Remote Viewfinder
. Mobile Link
. Wi-Fi Direct
. TV Link
. Social Sharing |
Interface |
Digital Output Connector |
USB 2.0 (HI-SPEED) (micro USB Jack) |
Video output |
NTSC, PAL (user selectable)
HDMI 1.4a : (1080i, 720P, 576P / 480P) |
External Release |
Yes |
External Mic |
Yes |
Power
Source |
Type |
Rechargeable battery : BP1310 (1300mAh)
Charger: BC1310 |
Battery life |
360 shot (CIPA Standard) |
Physical
Specification |
Dimensions (WxHxD) |
122 x 89.6 x 39.5mm |
Weight |
341g (without batteries and Memory card) |
Operating Temperature |
0 ~ 40 °C |
Operating Humidity |
5 ~ 85% |
Software |
Application |
intelli-studio 3.0, Samsung RAW Converter 4, PC Auto Backup |
Adobe Reader |
|
|
