Two superzooms, an ultra compact, a tough/waterproof, and the LX3 successor from Panasonic Lumix

The new Panasonic Lumix DMC-LX5 skips a number and replaces the much-vaunted LX3

Panasonic Lumix has unveiled its summer collection of new camera models. There is nothing new from the G-Micro (Micro Four Thirds mirror-less interchangeable system or 'hybrid') range, but we do get the long-expected LX3 successor in the LX5. There are also two new superzoom bridge cameras, the FZ45 and the FZ100, the latter sporting an articulating LCD screen. There is the latest in Panasonic's long line in ultra compact cameras in the FX700, and finally we have a new tough/waterproof compact in the FT10. Improved Venus Engine image processing and sensors are among the benefits offered by the new cameras and we have the full details in Panasonic's official press releases for you in the pages following this one.

But for enthusiasts most eyes will be on the LX5. The out-going LX3 is regarded by some as something of a classic with its small size, yet superb 24-60mm (equivalent) Leica-branded zoom lens and brave technical move to eschew very high resolution sensors in order to preserve noise and dynamic range. If there was a criticism of the LX3 it was that its lens didn't reach forward enough for ideal portraiture shooting. The LX5 addresses this with a new 24-90mm (equivalent) Leica branded DC Vario Summicron lens. The increase in focal length at the long end of the zoom range has not sacrificed the LX3's fast f/2 aperture benefit and neither is there a noticeable weight or bulk penalty.

According to Panasonic the LX5 now has a higher sensitivity CCD sensor that further increases dynamic range and low light noise performance. Panasonic has also retained the unique 16:9 sensor format so that wide screen shooting does not require cropping of the top and bottom of the frame. AVCHD Lite video recording is featured, making the most of the CCD sensor format. And as the LX5 uses a CCD sensor instead of a CMOS type, movie fans should be free of the 'video wobble' effect that commonly afflicts CMOS sensors.

Another improvement to the LX design is a 3 inch LCD screen with improved colour rendering. There is also faster auto focusing, and latest generation Venus Engine benefits like Intelligent Resolution introduced with other Lumix models earlier this year. Besides a clip on optical viewfinder, the LX5 is now compatible with the DMW-LVF1 electronic viewfinder originally developed for use with the Lumix DMC-GF1 Micro Four Thirds camera model.

Panasonic is competing head to head with Canon and its G11 compact with the LX5 and it will be fascinating to see how these two compare out in the field.

Read on for more detailed information about the LX5 and all the other models announced by Panasonic today.

Reader feedback:

Discuss this story:

Creative Compact Digital Camera DMC-LX5 Even Advanced Further

With New High Sensitivity CCD and F2.0 LEICA DC VARIO-SUMMICRON LENS

Panasonic is proud to announce a long-awaited DMC-LX5 - a successor to the DMC-LX3, acclaimed worldwide especially by the photography enthusiasts, after two years of silence. Since the birth of DMC-LX3, the new category is established in the compact camera market, which is called premium compact cameras that features high picture quality and creative descriptiveness. The new DMC-LX5 is fully re-designed in the lens, the CCD and the image processing engine together with other improvements and upgrades.

The newly developed super bright F2.0 ultra wide angle 24mm LEICA DC VARIO-SUMMICRON lens minimizes distortion for stunning, true-to-life images with outstanding resolution and detail. The 24mm of wide angle offers extraordinarily large viewing space and now the optical zoom is extended to 3.8x(90mm) making the LX5 even more versatile.

The highly acclaimed 10.1-megapixel CCD in the LX3 has been redesigned to achieve the expansion of dynamic range by increasing the sensitivity and the saturation. The Venus Engine FHD is also redesigned for advanced signal processing in both photo and movie recording. The high sensitivity made possible by the new sensor and the superior signal processing by the new imaging engine especially elevates the picture quality in low light situations.

For the movie recording, the DMC-LX5 is newly compatible with long time high quality HD movie recording in AVCHD Lite in addition to the conventional motion JPEG format. A host of creative options including Creative Movie mode, My Color mode and Film mode are available for more extended expression not only in photography but also in videography.

The external design is also improved to pursue high operability - the thickened grip for easier hold, the newly incorporated turn-and-push jog dial achieves various selection and setting more quickly. The hot shoe allows attachment of advanced accessories such as optional Live View Finder which helps shooting under strong daylight with high visibility. The 1:1 square format setting is added in the aspect ratio option which can be selected with the switch at the side of the lens barrel.

The 3.0-inch large 460,000-dot high resolution Intelligent LCD is also redesigned by adopting High CRI (Color Rendering Index) backlight LED to greatly increase the color reproduction offering remarkable visibility both in shooting and playing back images in any conditions from at dark night to under dazzling sunlight. Despite the high performance and the maintained size of the camera body, the battery life is extended to shoot 400 pictures (CIPA) per a single charge.

As a pocket camera of professionals and high amateurs, or an advanced camera of step-up users, the DMC-LX5 promises none-the-like picture quality and creativity backed up by crystallization of Panasonic’s state-of-the-art optical and digital technologies. Leading the expressive possibility of compact cameras to even higher dimension, the DMC-LX5 starts its history that will surely be passed into legend.

*35mm film camera equivalent: 24-90mm

1. F2.0 Super Bright 24mm Ultra-Wide-Angle* High Quality LEICA DC VARIO-SUMMICRON Lens with Minimum Distortion

The DMC-LX5 is equipped with newly developed F2.0 24mm ultra-wide-angle LEICA DC VARIO-SUMMICRON lens with even higher resolution. The super bright, high quality lens is redesigned for extension of the optical zoom from LX3’s 2.5x(60mm) to 3.8x(90mm) to be even more versatile for snapshots including portraits. The F2.0 lens is about twice as bright as the F2.8 lens, itself generally considered a bright lens. The result is higher shutter speed can be used to capture stunningly clear, sharp, blur-free images in lower lighting situation. This advanced lens also makes it easy to produce beautiful photos with pleasing soft-focused background thanks to the shallow depth of field provided by the extra light.

Also, the 24mm ultra-wide-angle lens - rare on a compact camera - gives photographers a wider range of composition possibilities. The super-high-quality LEICA DC VARIO- SUMMICRON lens minimizes distortion at the wide end, so users can get stunning, true-to-life images with outstanding resolution and detail. The LX5 captures approx. 213% larger viewing space compared to that normal 35mm camera does, and even approx. 136% larger compared to that 28mm wide-angle lens can do.

The lens unit consists of 10 elements in 9 groups with 3 aspherical lenses with 5 aspherical surfaces. Minimal distortion, high resolution, minimum artifacts such as chromatic aberrations, ghosting and flaring are the proof of uncompromising imaging made possible by F2.0 24mm ultra wide angle LEICA DC VARIO-SUMMICRON lens.

Thanks to the newly incorporated Intelligent Resolution technology, the Intelligent Zoom is available with the LX5 which extends the zoom ratio by approx. 1.3x maintaining the picture quality even combining a digital zoom. This means the 3.8x optical can virtually extend to 5x equivalent. Furthermore, the Extra Optical Zoom function that extends zoom power to 6.7x (at 3-megapixel resolution) by using the center part of the large CCD to bring subjects even closer.

In addition, the iris diaphragm allows the users to adjust aperture at fine steps manually.

*35mm film camera equivalent: 24-90mm

2. Newly Designed 1/1.63-inch 10.1-megapixel High Sensitivity CCD with Wider Dynamic Range

The predecessor DMC-LX3 played a big role to cease the pixel count war by adopting 1/1.63-inch CCD for 10.1-megapixel recording to realize the unprecedented picture quality with a compact digital camera and even to establish a new premium compact camera category in the market. The CCD in the LX3 which was highly acclaimed from the specialists worldwide is redesigned to achieve the further expansion of dynamic range by increasing the sensitivity by approx. 31% and the saturation by approx.38%*. It is made possible by the improvement of on-tip-lens design with larger light concentration and VCCD expansion while deepening the photo diode to manage richer signal more effectively.

The result is a high resolution, noise-less pictures even in high sensitivity recording and richly reproduced gradation in highly contrasted situations with the exquisitely wide dynamic range. Taking advantage of the high sensitivity CCD and the brightness of the lens, minimum illumination of DMC-LX5 is as low as 3 lux in movie recording.

Normally, to produce an image of 3:2 or 16:9 aspect ratio, 4:3 picture will be cropped, so the picture does not have the maximum advantage of these extraordinary recording aspect. However, the CCD in DMC-LX5 can reproduce images shot with the lens set from 24mm to 90mm in any of three aspect ratios; 4:3, 3:2 or 16:9, so you can always capture dynamic, richly expressive shots with a wide perspective. The Multi Aspect mode allows the camera to take an image in all three aspect ratios simultaneously for photographer to choose the one that best takes the advantage of the scene after shooting.

*Panasonic in-house comparison with DMC-LX3.

3. The New Venus Engine FHD Assures High Picture Quality for Both Photo and Movie

For the image processing LSI, newly developed Venus Engine FHD is equipped with the DMC-LX5 featuring even higher-speed, higher-performance while compiling the Intelligent Resolution technology. It enables the recording of beautiful photo and high-definition movie with higher quality signal processing. The triple CPUs in this imaging engine dramatically speed up processing while achieving exceptional noise reduction performance. The Venus Engine FHD's excellent energy efficiency supports long-time AVCHD Lite movie recording, and allows the output of both images and sounds via HDMI.

At the same time, the multi-task image-processing engine Venus Engine FHD supports a super-fast response time. The shutter release time lag is as short as approx. 0.007 second and the camera's quick response makes it easier to capture sudden, spur-of-the-moment photo opportunities together with the Sonic Speed AF (Auto Focus) that gains approx.40% higher speed* and the quick startup time.

With the Intelligent Resolution technology, 3 areas - outlines, detailed texture areas and soft gradation areas are automatically detected. The outline parts are enhanced effectively to give edges more clearness while giving a moderate accentuation to the texture areas to look more finely detailed. To the soft gradation part, superior noise reduction system of the Venus Engine FHD is applied to make it smoother. Apart from the uniform enhancement of sharpness, the innovative technology Intelligent Resolution precisely performs signal processing pixel by pixel in the most effective way for it. As a result, images are naturally clear and crisp in both photo and movie recording. The Intelligent Resolution technology also realizes the Intelligent Zoom, which virtually extends the optical zoom ratio to its approx. 1.3x equivalent maintaining the picture quality even combining the digital zoom. Details of an image in high sensitivity recording tend to be lost in the noise reduction process; however, the Intelligent Resolution works to keep them.

Despite the high performance, the Venus Engine FHD is superior in efficiency to extend the battery life of DMC-LX5 to 400 pictures (CIPA) per a single charge.

*In comparison with DMC-LX3, using 1-area AF, at wide/tele-end.

4. Save Memories in Movie - Start Enjoying Videography As You Enjoy Photography

In addition to Motion JPEG images, the DMC-LX5 can record high-definition motion picture in AVCHD Lite. It features almost doubling the recording time in HD quality compared with the conventional Motion JPEG format. The picture quality is greatly enhanced thanks to the newly added Intelligent Resolution technology. The LX5 also features Dolby Digital Creator to record high quality audio.

In movie recording, the DMC-LX5 goes further than simply recording HD movies. Apart from the movie recording capability of conventional digital compact cameras, the DMC-LX5 also features a Creative Movie mode, which lets the user set the shutter speed and aperture manually to make even more impressive movies. Changing the shutter speed brings special effects to movies, which is especially suitable for shooting fast-moving subject. The ability to control the aperture is convenient when there are several subjects at different distances and it is desired to have each of them stand out. My Color mode, which will be detailed later, is also available in movie recording.

The optical zoom is available in movie recording, too. With the newly added Video Divide function, users can divide the video into two sections to shorten or delete the unwanted part on the spot in the camera. You can cut out a clear still image from a movie in the camera thanks to the Intelligent Resolution technology. A Wind Cut function is also available to block out most of the noise from background wind. The minimum illumination is as low as 3 lux thanks to the F2.0 super bright LEICA DC VARIO-SUMMICRON lens and the high sensitivity CCD.

The popular iA (Intelligent Auto) is also available in movie recording. The POWER O.I.S. (Optical Image Stabilizer), Face Detection, and Intelligent Scene Selector also support shooting beautiful movie with ease. The Intelligent Scene Selector automatically switches between Normal, Portrait, Macro, Scenery, and Low Light modes according to the situation to optimize visual quality. The Intelligent Exposure that also optimizes the exposure to prevent over/under exposure part from occurring.

Still or motion images recorded in AVCHD Lite on SD Memory Cards are easy to view on a Panasonic VIERA TV. Simply insert the card into the VIERA Image Viewer (SD Memory Card slot) on VIERA TV or DIGA Blu-ray Disc Player to playback your contents. Alternatively, you can use an optional mini HDMI cable to output the still and motion images you took from the LX5 directly to the TV for VIERA Link. You can take maximum advantage of LUMIX camera's playback functions including the slideshow in which both still and motion images are integrated in the timeline, category playback according to the scene mode you used or calendar display and so on. All control is possible using only the TV's remote control.

In addition, with the included software PHOTOfunSTUDIO 5.0 HD Edition, it is easy to view and edit your recorded contents. You may also choose to upload your videos to YouTube or burn them to a DVD disc for archiving.

·Motion images can be recorded continuously for up to 29min 59 sec in European PAL areas

·Continuous recording exceeding 2GB is not possible when recording motion JPEG. Remaining time for continuous recording is displayed on the screen.

·Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures in [AVCHD Lite]. Also, use a card with SD Speed Class with "Class 6" or higher when recording motion pictures in [MOTION JPEG].

*SD Speed Class is the speed standard regarding continuous writing.

5. Enhanced Operability and Unlimited Possibility for Expression

Studying the feedback from the users of the predecessor DMC-LX3, the DMC-LX5 has been also redesigned externally to pursue its operability. Its size is almost the same but the new gently formed grip provides easier handling even in active shooting style. The hot shoe is newly added for attachment of the optional Live View Finder (DMW-LVF1), users can also choose the External Optical Viewfinder (DMW-VF1) according to their shooting style. The newly adopted jog dial enhances the operability for quick setting change and the dedicated playback button lets the user play back the images and return to the shooting menu in split seconds. The aspect can be changed directly with the aspect switch on the lens barrel among 4:3, 3:2, 16:9 and the new 1:1.

In addition to the Film mode in which user can select the texture of the photo as you choose a film, My Color mode is newly added to DMC-LX5. My Color mode is a special option that gives free reign to the user's creativity. User can select the color out of 12 options including Expressive, Retro, Pure, Elegant, Monochrome, Dynamic Art, Silhouette, Pin Hole, Film Grain, High Dynamic, Dynamic B&W and Custom (the parameter of color / brightness / saturation adjustable). This makes it easier and more fun to create interesting, expressive images. The user can adjust the settings that best suit the shooting conditions and his or her expressive intent, for greater photographic control. It is available also in movie recording giving the user a wider range of expressive possibilities to explore together with the Creative Movie mode.

6. Other Features That Add Fun and Ease to the Camera

The DMC-LX5 is equipped with a 3.0-inch, 460,000-dot Intelligent LCD with super high resolution and a wide viewing angle. The screen brightness automatically adjusts in 11 steps as the surrounding brightness level changes, ensuring easy visibility at all times. The big screen reflects fine details, making it easy to check the focus before shooting. It also serves as a small photo and video viewer, allowing the user and friends to enjoy viewing the still and motion images together. Plus, reflection is suppressed with the AR coating. Plus, adopting the High CRI (Color Rendering Index) LED backlight realizes vivid, impressive color reproduction true to the memory color that your eyes remember.

The ISO value can be set in 1/3 EV increments for finer control. The maximum setting is ISO 12800* enabling shooting in extremely dark places.

The new Step Zoom option, zoom range can be set to 24mm, 28mm, 35mm, 70mm or 90mm via the easy menu as you change the fixed focal length lens with D-SLR. Max.800mm is available if combining the Intelligent Zoom and digital zoom.

The DMC-LX5 has advanced functions that will satisfy experienced photographers, yet is easy enough for beginners to use comfortably if iA(intelligent Auto)mode is used. POWER O.I.S.(Optical Image Stabilizer), Face Recognition, AF Tracking, Intelligent ISO Control, Intelligent Scene Selector, Intelligent Exposure are available in photo recording and POWER O.I.S. Face Detection, Intelligent Scene Selector and Intelligent Exposure in movie recording. Once you enter the iA mode, these functions happen automatically, so you can shoot without the bother of adjusting settings every time conditions change. You can enjoy easy, trouble-free shooting in any situation and get the satisfaction that comes with capturing clear, beautiful images.

*In 3-megapixel recording mode.

7. Rich options for expandability

The DMC-LX5 offers a wide variety of options to choose from to match every shooting situation and shooting style. Newly equipped hot shoe allows the attachment of optional tilt-shift Live View Finder of 1.04x (0.52x*) magnification, 202,000-dot, 100% field of view, which ensures comfortable monitoring even under the strong daylight.

Live View Finder: DMW-LVF1

External Optical View Finder: DMW-VF1

Wide Conversion Lens: DMW-LWA52 NEW

Conversion Lens Adaptor: DMW-LA6 NEW

MC Protector: DMW-MC52

ND Filter: DMW-LND52

PL Filter: DMW-LPL52

External Flash: DMW-FL220(GN22) / DMW-FL360(GN36) / DMW-FL500(GN50)

Genuine Leather Case:DMW-CLX5 NEW

Battery Pack: DMW-BCJ13 NEW

About Included Software PHOTOfunSTUDIO 5.0 HD Edition

The latest version of exciting software PHOTOfunSTUDIO 5.0 HD Edition comes bundled with DMC-LX5. With quick start-up and fast read-in of images, the PHOTOfunSTUDIO 5.0 HD Edition makes it possible to sort and organize photos not only of those newly taken but also of those stored in your PC. The Face Recognition function that recognizes the faces in the picture and the software automatically sorts the photos by the registered faces without picking out each photo one by one when you only want pictures of a specific person. You can also enjoy slideshows with a variety of effects and use your iTunes music library as background music. Motion pictures can be uploaded directly to YouTube using the built-in YouTube uploader even in HD (High Definition) quality. It also lets you create a 360-degree rotation panorama file in MOV, which is especially easy if Panorama Assist mode in the camera is used. Experience and feel the outstanding benefit of the PHOTOfunSTUDIO 5.0 HD Edition. It will surely allow you to view, edit and archive your captured photos and motion pictures with greater ease and fun.

• Leica is a registered trademark of Leica Microsystems IR GmbH.
• The LEICA DC VARIO-SUMMICRON lenses are manufactured using measurement instruments and quality assurance systems that have been certified by Leica Camera AG based on the company's quality standards.
• The "AVCHD" is a high definition (HD) digital video recording / playback format jointly established by Panasonic Corporation and Sony Corporation. The "AVCHD Lite" is a subset of the "AVCHD format" for HD digital video cameras with HD video recording restricted to 720P. The new "AVCHD Lite" Logo and the "AVCHD Lite" License are restricted to devices within the AVCHD Video Camera category. Digital cameras have been added to the AVCHD Video Camera category.
• The "AVCHD Lite" and the "AVCHD Lite" logo are trademarks of Panasonic Corporation and Sony Corporation.
• AVCHD Lite motion images recorded onto an SD Memory Card or a DVD disc cannot be played on a device that does not support the AVCHD standard.
• Dolby and the double-D symbol are trademarks of Dolby Laboratories.
• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
• YouTube is a trademark of Google Inc.
• All other company and product names are trademarks of their respective corporations.
• This unit is compatible with both SD/SDHC/SDXC Memory Cards. You can only use SDHC Memory Cards on devices that are compatible with them. You cannot use SDHC Memory Cards on devices that are only compatible with SD Memory Cards. (When using an SDHC Memory Card on another device, be sure to read the operating instructions for that device.)
• Some accessories are not available in some countries.
• The use of recorded or printed materials that are protected by copyright for any purpose other than personal enjoyment is prohibited, as it would infringe upon the rights of the copyright holder.
• Design and specifications are subject to change without notice.

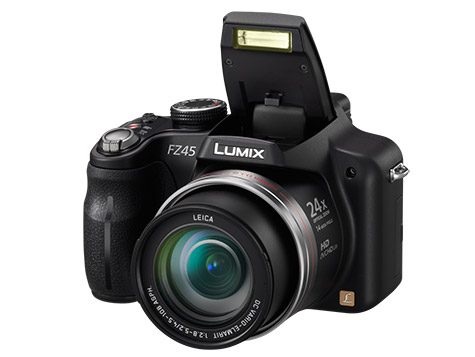

DMC-FZ45 Offering Active, Creative Photo and Movie

*35mm camera equivalent: 25-600mm

Panasonic is pleased to introduce another feature-packed hybrid digital compact camera with 14.1-megapixel DMC-FZ45 from the popular FZ series that combines a powerful optical zoom and creative options including manual operation. The newly developed LEICA DC VARIO-ELMARIT lens in the DMC-FZ45 extends its optical zoom range from 27mm to 25mm at wide end and the zoom power from 18x to 24x to be even more versatile compared to the DMC-FZ35*. The new image processing LSI the Venus Engine HD II achieves high picture quality in both photo and HD movie recording. It also compiles the Intelligent Resolution technology to perform the optimum signal processing depending on the part of a picture to give a whole image outstandingly natural clearness with fine details. The powerful 24x optical zoom* can increases its power to 32x equivalent with the Intelligent Zoom function taking advantage of the Intelligent Resolution technology maintaining the picture quality even using digital zoom. The Sonic Speed AF in the FZ45 features its speed at the industry's fastest level. Combined with a high-speed start-up, this gives the FZ45 an industry's fastest level of response that helps to catch even the most fleeting photo opportunities.

The manual control of FZ45 elevates the operability even higher with the incorporation of new jog dial. A focus button lets users change its setting quickly according to the shooting condition. User can enjoy creative shooting expressing their intention not only in photo but also in movie, utilizing a host of options including Creative Movie mode and My Color mode.

Panasonic's iA (Intelligent Auto) mode - a hallmark of LUMIX cameras - includes POWER O.I.S. (Optical Image Stabilizer) which features double the repression power compared to the conventional image stabilization system, MEGA O.I.S. The hand-shake, which is physically generated when pressing the shutter button or when shooting at night with a slow shutter speed, is effectively compensated by the new POWER O.I.S. to enjoy blur-free photography even using high-powered zoom. The iA mode is also available in movie recording mode. It automatically selects the most suitable Scene mode and helps to correct handshake, focus and brightness problems - making the iA mode your one-stop solution to capture beautiful still and motion images.

The 3.0-inch 230,000-dot Intelligent LCD assures high visibility during both recording images and playing back them. Despite its outstanding performance, the DMC-FZ45 excels in the energy efficiency extending the battery life up to 580 shots (CIPA) per a single charge.

Recording both high quality photo and movie with super fast response at 25mm ultra wide angle to super telephoto 24x, the DMC-FZ45 is none-the-like versatile digital compact camera with functions that satisfies users at any level of photography from beginners to high amateurs.

*Equivalent to 35mm camera: 25-600mm.

1. 25mm Ultra Wide-Angle LEICA DC VARIO-ELMARIT Lens with Powerful 24x Optical Zoom for Ultimate Versatility in Both Photo and Movie Recording

The FZ45 features a high-quality LEICA DC VARIO-ELMARIT 25mm ultra wide-angle lens with a 24x optical zoom(35mm camera equivalent:25-600mm). Comprising 14 elements in 10 groups, including 3 ED lenses and 2 aspherical lenses with 3 aspherical surfaces, this advanced lens unit realizes the outstandingly compact body while passing Leica's stringent standards to deliver exceptional optical performance suppressing distortion at wide end and color bleeding at tele end. Thanks to the newly incorporated Intelligent Resolution technology, the Intelligent Zoom is available with the FZ45 which extends the zoom ratio by approx. 1.3x maintaining the picture quality even combining a digital zoom. This means the 24x optical can virtually extend to 32x equivalent. Furthermore, the Extra Optical Zoom function that extends zoom power to 50.6x (at 3-megapixel resolution) by using the center part of the large CCD to bring subjects even closer.

2. Enjoy Easy Shooting of HD Movie in AVCHD Lite with Advanced iA(Intelligent Auto) Mode

The DMC-FZ45 is capable of recording high quality HD Movie in AVCHD Lite. The AVCHD Lite features almost doubling the recording time in HD quality compared with the conventional Motion JPEG and excels in the compatibility with TV and other AV equipment. The picture quality is greatly enhanced thanks to the Intelligent Resolution technology. The DMC-FZ45 also features Dolby Digital Creator to record high quality audio.

The popular iA (Intelligent Auto) is also available in movie recording. The POWER O.I.S. (Optical Image Stabilizer), Face Detection, and Intelligent Scene Selector also support shooting beautiful movie with ease. The Intelligent Scene Selector automatically switches between Normal, Portrait, Macro, Scenery, and Low Light modes according to the situation to optimize visual quality. The Intelligent Exposure that also optimizes the exposure to prevent over/under exposure part from occurring.

A special, separate button on the top lets the user instantly start recording movies while shooting photos without any extra settings. The powerful 24x optical zoom is available in movie recording, too. With the newly added Video Divide function, users can divide the video into two sections to shorten or delete the unwanted part on the spot in the camera. You can cut out a clear still image from a movie in the camera thanks to the Intelligent Resolution technology. A Wind Cut function is also available to block out most of the noise from background wind.

Photos or movies recorded in AVCHD Lite on SD Memory Cards are easy to view on a Panasonic VIERA TV. Simply insert the card into the VIERA Image Viewer (SD Memory Card slot) on VIERA TV or DIGA Blu-ray Disc Player to playback your contents. Alternatively, you can use an optional mini HDMI cable to output the still and motion images you took from the FZ45 directly to the TV for VIERA Link. You can take maximum advantage of LUMIX camera's playback functions including the slideshow in which both still and motion images are integrated in the timeline, category playback according to the scene mode you used or calendar display and so on. All control is possible using only the TV's remote control.

In addition, with the included software PHOTOfunSTUDIO 5.0 HD Edition, it is easy to view and edit your recorded contents. You may also choose to upload your videos to YouTube or burn them to a DVD disc for archiving.

·Motion images can be recorded continuously for up to 29min 59 sec in European PAL areas

·Continuous recording exceeding 2GB is not possible when recording motion JPEG. Remaining time for continuous recording is displayed on the screen.

·Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures in [AVCHD Lite]. Also, use a card with SD Speed Class with "Class 6" or higher when recording motion pictures in [MOTION JPEG].

*SD Speed Class is the speed standard regarding continuous writing.

3. The Evolving iA (Intelligent Auto) Mode Makes Every Photo Blur-less

Panasonic incorporated the Intelligent Auto mode in pursuit of the ultimate ease of operation and the reduction of misshots. In the iA mode, the camera does all the work, leaving you free to compose shots and capture moments. Just press, aim and shoot.

The hand-shake component, which is physically generated when pressing the shutter button or when shooting at night with a slow shutter speed, is recognized as a low-frequency vibration, for which the new POWER O.I.S. is particularly effective. This greatly improves the quality of shots taken with high zoom and at night or indoors where a flash cannot be used, or where the photographer doesn't want to use a flash because it would spoil the mood. It captures beautiful photos in situations that previously resulted in blurring.

The Face Recognition function remembers registered faces to give an appropriate AF/AE on the people while removing the unwanted red-eye. The Intelligent Scene Selector automatically selects whichever of 6 Scene modes - Macro, Portrait, Scenery, Night Portrait, Night Scenery and Sunset - that best suits the shooting situation.

In addition, the Intelligent Resolution technology is always activated in the iA mode which results in the clearer and higher picture quality in every photo and movie with extended zoom range equivalent to 32x optical zoom by the Intelligent Zoom.

Once you enter the iA mode, these functions happen automatically together with other powerful shooting-assist functions - AF Tracking, Intelligent ISO Control and Intelligent Exposure - so you can shoot without the bother of adjusting settings every time conditions change. You can enjoy easy, trouble-free shooting in any situation and get the satisfaction that comes with capturing clear, beautiful images.

The newly added Happy mode, a color mode option in the iA mode, optimizes color, saturation and brightness to make both photos and movies more vivid and true to the color of the scene you memorized.

4. The Intelligent Resolution Technology Compiled in the New Venus Engine HD II Assures High Picture Quality for Both Photo and Movie

The high-speed, high-performance Venus Engine HD II is newly incorporated in the DMC-FZ45 to enable the recording of beautiful photo and high-definition movie with higher quality signal processing including the Intelligent Resolution technology.

With the Intelligent Resolution technology, 3 areas - outlines, detailed texture areas and soft gradation areas are automatically detected. The outline parts are enhanced effectively to give edges more clearness while giving a moderate accentuation to the texture areas to look more finely detailed. To the soft gradation part, superior noise reduction process of the Venus Engine HD II is applied to make it smoother. Apart from the uniform enhancement of sharpness, the innovative technology, Intelligent Resolution, precisely performs signal processing pixel by pixel in the most effective way for it. As a result, images are naturally clear and crisp in both photo and movie recording.

The Intelligent Resolution technology also realizes Intelligent Zoom, which virtually extends the optical zoom ratio to its approx. 1.3x equivalent maintaining the picture quality even combining the digital zoom. Details of an image in high sensitivity recording tend to be lost in the noise reduction process; however, the Intelligent Resolution works to keep them.

At the same time, the multi-task image-processing engine, the Venus Engine HD II achieves super-fast response time. The shutter release time lag is as short as approx. 0.006 second and the camera's quick response makes it easier to capture sudden, spur-of-the-moment photo opportunities together with the Sonic Speed AF (Auto Focus). The high performance Venus Engine HD II is also more energy efficient compared with the conventional Venus Engine HD, extending the battery life up to 580 shots (CIPA) per a single charge.

5. Intuitive Manual Control and Creative Option

The excellent manual controllability is the advantage of DMC-FZ45, making it stand out of standard compact cameras. The newly adopted jog dial enhances the operability together with the focus button on the back of the camera.

In movie recording, the DMC-FZ45 goes further than simply recording HD movies. Apart from the movie recording capability of conventional digital compact cameras, the DMC-FZ45 also features a Creative Movie mode, which lets the user set the shutter speed and aperture manually to make even more impressive movies. Changing the shutter speed brings special effects to movies, which is especially suitable for shooting fast-moving subject. The ability to control the aperture is convenient when there are several subjects at different distances and it is desired to have each of them stand out.

My Color mode, which is popular in the LUMIX G Micro System cameras, is a special option that gives free reign to the user's creativity. With a variety of options including new Pin Hole, Film Grain, High Dynamic and High Dynamic B&W, the My Color mode makes it easier and more fun to create interesting, expressive images by shooting images with most intensive color, brightness and saturation parameters. The popular My Color mode is available also in movie recording giving the user a wider range of expressive possibilities to explore together with the Creative Movie mode.

6. Other features Enhances Photographic Experience

The DMC-FZ45 features 3.0-inch large 230,000-dot high-resolution LCD (which boasts a wide viewing angle) and 0.2-inch 201,600-dot EVF, both with 100% field of view. A large, clear, easy-to-see LCD offers even more comfortable view for both monitoring when shooting and for playing back the results.

The DMC-FZ45 offers a wide variety of options to choose from to match every shooting situation and shooting style.

Tele Conversion Lens(1.7x): DMW-LT55

Close-up Lens: DMW-LC55

Conversion Lens Adaptor: DMW-LA5 NEW

MC Protector: DMW-MC52

ND Filter: DMW-LND52

PL Filter: DMW-LPL52

Battery Pack: DMW-BMB9

Carrying Case: DMW-CZS100 NEW

Bag:DMW-CZ18

About Included Software PHOTOfunSTUDIO 5.0 HD Edition

The latest version of exciting software PHOTOfunSTUDIO 5.0 HD Edition comes bundled with DMC-FZ45. With quick start-up and fast read-in of images, the PHOTOfunSTUDIO 5.0 HD Edition makes it possible to sort and organize photos not only of those newly taken but also of those stored in your PC. The Face Recognition function that recognizes the faces in the picture and the software automatically sorts the photos by the registered faces without picking out each photo one by one when you only want pictures of a specific person. You can also enjoy slideshows with a variety of effects and use your iTunes music library as background music. Motion pictures can be uploaded directly to YouTube using the built-in YouTube uploader even in HD (High Definition) quality. It also lets you create a 360-degree rotation panorama file in MOV, which is especially easy if Panorama Assist mode in the camera is used. Experience and feel the outstanding benefit of the PHOTOfunSTUDIO 5.0 HD Edition. It will surely allow you to view, edit and archive your captured photos and motion pictures with greater ease and fun.

*Leica is a registered trademark of Leica Microsystems IR GmbH.

*The LEICA DC VARIO-ELMARIT lenses are manufactured using measurement instruments and quality assurance systems that have been certified by Leica Camera AG based on the company's quality standards.

• The "AVCHD" is a high definition (HD) digital video recording / playback format jointly established by Panasonic Corporation and Sony Corporation. The "AVCHD Lite" is a subset of the "AVCHD format" for HD digital video cameras with HD video recording restricted to 720P. The new "AVCHD Lite" Logo and the "AVCHD Lite" License are restricted to devices within the AVCHD Video Camera category. Digital cameras have been added to the AVCHD Video Camera category.
• The "AVCHD Lite" and the "AVCHD Lite" logo are trademarks of Panasonic Corporation and Sony Corporation.
• AVCHD Lite motion images recorded onto an SD Memory Card or a DVD disc cannot be played on a device that does not support the AVCHD standard.

*Dolby and the double-D symbol are trademarks of Dolby Laboratories.

*HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

*YouTube is a trademark of Google Inc.

*All other company and product names are trademarks of their respective corporations.

*This unit is compatible with both SD/SDHC/SDXC Memory Cards. You can only use SDHC Memory Cards on devices that are compatible with them. You cannot use SDHC Memory Cards on devices that are only compatible with SD Memory Cards. (When using an SDHC Memory Card on another device, be sure to read the operating instructions for that device.)

*Some accessories are not available in some countries.

*The use of recorded or printed materials that are protected by copyright for any purpose other than personal enjoyment is prohibited, as it would infringe upon the rights of the copyright holder.

*Design and specifications are subject to change without notice.

Offering Active, Creative Photo and Movie with Powerful 24x Optical Zoom and Hi-Speed Response

*35mm camera equivalent: 25-600mm

Panasonic is pleased to introduce new DMC-FZ100, top-of-the-line of LUMIX popular FZ series that packs a powerful optical zoom and creative options including manual operation, adding full HD movie recording capability. The newly developed LEICA DC VARIO-ELMARIT lens in the DMC-FZ100 extends its optical zoom range from 27mm to 25mm at wide end and the zoom power from 18x to 24x to be even more versatile compared with the DMC-FZ35*. Also the newly developed 14.1-megapixel MOS sensor lets the FZ100 record high quality 1920x1080 full HD movie as smooth as 60i (NTSC) / 50i (PAL). Together with a host of options, the unlimited expression of not only photo but also of movie is now easily available with FZ100. The high speed MOS sensor realizes the industry’s fastest level of burst shooting in 14.1-megapixel full resolution at 11 fps with mechanical shutter and even 60 fps in 3.5-megapixel recording mode**. It also enables the camera to record high speed movie at 220 fps in QVGA size, to capture the motion of a subject the naked eye cannot see.

The new image processing LSI the Venus Engine FHD assures high picture quality in both photo and movie recording. It also compiles the Intelligent Resolution technology to perform the optimum signal processing depending on the part of a picture to give a whole image outstandingly natural clearness with fine details. The powerful 24x optical zoom* can be increased its power to 32x equivalent with the Intelligent Zoom function taking advantage of the Intelligent Resolution technology maintaining the picture quality even using digital zoom. The Sonic Speed AF in the FZ100 features its speed at the industry's fastest level. Combined with a high-speed start-up, this gives the FZ100 an industry's fastest level of response that helps to catch even the most fleeting photo opportunities.

The manual control of FZ100 elevates the operability even higher with the incorporation of new jog dial. Focus switch is newly equipped on the lens barrel true to the system camera. User can enjoy creative shooting expressing their intention not only in photo but also in movie, utilizing a host of options including Creative Movie mode and My Color mode.

The iA (Intelligent Auto) mode - an advancing hallmark of LUMIX - now comprehends Motion Deblur mode***. The Motion Deblur mode is available by updating the motion detection (Intelligent ISO Control) and brightness control (Intelligent Exposure) to gain as high shutter speed as possible. Combined with the outstanding brightness of the lens and the POWER O.I.S. (Optical Image Stabilizer), the DMC-FZ100 thoroughly prevents any kind of blur - whether the blur is caused by a handshake or the subject's motion. The POWER O.I.S., Face Recognition, Face Detection, AF Tracking, Intelligent ISO Control, Intelligent Scene Selector and Intelligent Exposure work appropriately just by entering the iA mode for any user to take beautiful photos with maximum ease.

The 3.0-inch free-angle Intelligent LCD has now 460,000-dot high resolution to dramatically, improve visibility during recording and playback. The battery life is also as powerful as approx. 410 pictures shooting thanks to the highly energy efficient MOS sensor and image processing LSI, the Venus Engine FHD.

Recording both high quality photo and movie with super fast response at 25mm ultra wide angle to super telephoto 24x, the DMC-FZ100 is none-the-like versatile digital compact camera with functions that satisfies users at any level of photography from beginners to high amateurs.

*Equivalent to 35mm camera: 25-600mm.

**In the high speed burst shooting at 60 fps, the picture size is 3.5-megapixel(16:9), 3-megapixel(3:2), 2.5-megapixel(4:3) or 2-megapixel(1:1)

***The picture size may be reduced.1. 25mm Ultra Wide-Angle LEICA DC VARIO-ELMARIT Lens with Powerful 24x Optical Zoom for Ultimate Versatility in Both Photo and Movie Recording

The FZ100 features a high-quality LEICA DC VARIO-ELMARIT 25mm ultra wide-angle lens with a 24x optical zoom(35mm camera equivalent:25-600mm). Comprising 14 elements in 10 groups, including 3 ED lenses and 2 aspherical lenses with 3 aspherical surfaces, this advanced lens unit realizes the outstandingly compact body while passing Leica's stringent standards to deliver exceptional optical performance suppressing distortion at wide end and color bleeding at tele end. Thanks to the newly incorporated Intelligent Resolution technology, the Intelligent Zoom is available with the FZ100 which extends the zoom ratio by approx. 1.3x maintaining the picture quality even combining a digital zoom. This means the 24x optical can virtually extend to 32x equivalent. Furthermore, the Extra Optical Zoom function that extends zoom power to 50.6x (at 3-megapixel resolution) by using the center part of the large MOS sensor to bring subjects even closer.

2. Newly Developed 14.1-Megapixel MOS Sensor Pursuing Even Higher Level in Resolution, Sensitivity and Speed

To realize the 1920x1080 full HD movie recording with high image quality, the new 14.1-megapixel MOS sensor is developed for DMC-FZ100. For the effective concentration of light, the newly developed sensor adopts microfabrication technology to achieve even higher sensitivity. With an advanced micro light tube structure, both color mixture and signal loss are prevented. The result is that the photo and movie shot at any sensitivity from low to high have outstanding clearness.

The high speed digital signal output technology integrated in the DMC-GH1 is applied also to the DMC-FZ100 realizing the high speed consecutive shooting and full HD movie recording. It lets the DMC-FZ100 shoot 11 fps in 14-megapixel full resolution with mechanical shutter and 5 fps with continuous AF. Even higher speed burst shooting is available with DMC-FZ100 if electronic shutter is used- 60 fps in 3.5-megapixel*. It also enables the camera to record Full HD 60i(NTSC) / 50i (PAL) smooth movie. In addition, the high speed movie at 220 fps in QVGA size is another advantage of the sensor which captures the motion of a subject. The frame rate, AF setting and the recording resolution can be easily selected according to the movement of the subject with a dedicated button on the top of the camera.

Photos shot with the burst shooting are automatically organized and it is easy to play them back later either in the camera or on PC using the bundled software PHOTOfunSTUDIO 5.2 HD Edition.

Despite its outstanding performance, the high performance MOS sensor contributes to energy efficiency extending the battery life up to 410 shots (CIPA) per a single charge.

*In the high speed burst shooting at 60 fps, the picture size is 3.5-megapixel(16:9), 3-megapixel(3:2), 2.5-megapixel(4:3) or 2-megapixel(1:1)

3. 1920x1080 60i Full HD Movie Recording in the AVCHD format

The LUMIX DMC-FZ100 is an advanced photographic tool for recording not only great photos but also beautiful full-HD movies. In addition to Motion JPEG images, the DMC-FZ100 can record high-resolution full-HD 1920 x 1080 60i(NTSC) / 50i (PAL) movies in AVCHD (MPEG-4/H.264)* format. The AVCHD format features almost twice the recording time in HD quality than the conventional Motion JPEG and excels in the compatibility with AV equipment like HDTVs or Blu-ray players. A special, separate button on the top lets the user instantly start recording movies while shooting photos without any having to make any extra settings.

The powerful 24x optical zoom is available in movie recording with the mechanism designed to minimize the noise of auto focusing or zooming. With DMC-FZ100, there are always two options to record spur-of-the-moment scenes - high-quality photos or movies. The user can simply choose the one that saves precious memories most beautifully.

The popular iA (Intelligent Auto) is also available in movie recording. The POWER O.I.S. (Optical Image Stabilizer), Face Detection, and Intelligent Scene Selector also support shooting beautiful movie with ease. The Intelligent Scene Selector automatically switches between Normal, Portrait, Macro, Scenery, and Low Light modes according to the situation to optimize visual quality. The Intelligent Exposure that also optimizes the exposure to prevent over/under exposure part from occurring.

The movies also come with the high-quality stereo sound of Dolby® Digital Stereo Creator, to offer highly realistic sound to the movie. For more creative sound recording, an optional stereo microphone (DMW-MS1) is available. And a Wind Cut function is also available to block out most of the noise from background wind.

It is also possible to take still image while recording motion picture simultaneously (3.5-megapixel)**.With the Video Divide function, users can divide the video into two sections to shorten or delete the unwanted part on the spot in the camera. You can cut out a clear still image from a movie in the camera thanks to the Intelligent Resolution technology. A host of options enhances the usability and fun of recording high quality full HD movie.

Photos or movies recorded in AVCHD on SD Memory Cards are easy to view on a Panasonic VIERA TV. Simply insert the card into the VIERA Image Viewer (SD Memory Card slot) on VIERA TV or DIGA Blu-ray Disc Player to playback your contents. Alternatively, you can use an optional mini HDMI cable to output the still and motion images you took from the FZ100 directly to the TV for VIERA Link. You can take maximum advantage of LUMIX camera's playback functions including the slideshow in which both still and motion images are integrated in the timeline, category playback according to the scene mode you used or calendar display and so on. All control is possible using only the TV's remote control.

In addition, with the included software PHOTOfunSTUDIO 5.2 HD Edition, it is easy to view and edit your recorded contents. You may also choose to upload your videos to YouTube or burn them to a DVD disc for archiving.

*Full-HD (1920 x 1080) movies are recorded at 60i (NTSC)/50i (PAL). HD (1280 x 720) movies are output and recorded by the image sensor at 60p (NTSC)/50p (PAL).

**In the high speed burst shooting at 60 fps, the picture size is max. 3.5-megapixel(16:9), 3-megapixel(3:2), 2.5-megapixel(4:3) or 2-megapixel(1:1)

·Motion images can be recorded continuously for up to 29min 59 sec in European PAL areas

·Continuous recording exceeding 2GB is not possible when recording motion JPEG. Remaining time for continuous recording is displayed on the screen.

·Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures in [AVCHD]. Also, use a card with SD Speed Class with "Class 6" or higher when recording motion pictures in [MOTION JPEG].

*SD Speed Class is the speed standard regarding continuous writing.

4. Redesigned Venus Engine FHD with Even Higher Signal Processing Performance

For the image processor, the new Venus Engine FHD is incorporated that features exceptionally advanced signal processing capabilities. By separating chromatic noise from luminance noise and applying the optimal noise reduction to each, you can capture clear and beautiful images even when shooting at high ISO sensitivity levels. The Venus Engine FHD also provides precisely selective noise reduction to the chromatic noise without affecting the border of colors which is judged from the brightness level of a pixel. The Intelligent Resolution technology is another feature of the Venus Engine FHD. With the Intelligent Resolution technology, 3 areas - outlines, detailed texture areas and soft gradation areas are automatically detected. The outline parts are enhanced effectively to give edges more clearness while giving a moderate accentuation to the texture areas to look more finely detailed. To the soft gradation part, superior noise reduction system of the Venus Engine FHD is applied to make it smoother. Apart from the uniform enhancement of sharpness, the innovative technology Intelligent Resolution precisely performs signal processing pixel by pixel in the most effective way for it. As a result, images are naturally clear and crisp in both photo and movie recording. The Intelligent Resolution technology also realizes Intelligent Zoom, which virtually extends the optical zoom ratio to its approx. 1.3x equivalent maintaining the picture quality even combining the digital zoom. Details of an image in high sensitivity recording tend to be lost in the noise reduction process; however, the Intelligent Resolution works to keep them. Linking smoothly with the MOS sensor, the Venus Engine FHD processes a large amount of signals at high speed, making it possible to record high resolution consecutive shots and full HD movie recording.

At the same time, the multi-task image-processing engine Venus Engine FHD achieves a super-fast response time. The shutter release time lag is as short as approx. 0.008 second and the camera's quick response makes it easier to capture sudden, spur-of-the-moment photo opportunities together with the Sonic Speed AF (Auto Focus).

5. Intuitive Manual Control and Creative Option

The excellent manual controllability is the advantage of DMC-FZ100, making it stand out of standard compact cameras. The newly adopted jog dial enhances the operability together with the focus switch relocated on the lens barrel.

In movie recording, the DMC-FZ100 goes further than simply recording HD movies. Apart from the movie recording capability of conventional digital compact cameras, the DMC-FZ100 also features a Creative Movie mode, which lets the user set the shutter speed and aperture manually to make even more impressive movies. Changing the shutter speed brings special effects to movies, which is especially suitable for shooting fast-moving subject. The ability to control the aperture is convenient when there are several subjects at different distances and it is desired to have each of them stand out.

My Color mode, which was popular in the LUMIX G Micro System cameras, is a special option that gives free reign to the user's creativity. With a variety of options including new Pin Hole, Film Grain, High Dynamic and High Dynamic B&W, the My Color mode makes it easier and more fun to create interesting, expressive images by shooting images with most intensive color, brightness and saturation parameters The popular My Color mode is available also in movie recording giving the user a wider range of expressive possibilities to explore together with the Creative Movie mode.

The newly added hot shoe allows attachment of various accessories including an optional stereo microphone (DMW-MS1) or an optional external flash (DMW-FL220/360/500). The DMC-FZ100 is also compatible with a optional remote shutter (DMW-RSL1) for advanced expression in photography.

6. Great Photography Is Not only from a Professional Photographer - Advanced iA (Intelligent Auto) Mode for Photo & Movie

The DMC-FZ100 has advanced functions that will satisfy experienced photographers, yet is easy enough for beginners to use comfortably.

The hand-shake component, which is physically generated when pressing the shutter button or when shooting at night with a slow shutter speed, is recognized as a low-frequency vibration, for which the POWER O.I.S. is particularly effective. This greatly improves the quality of shots taken with high zoom, at night or indoors where a flash cannot be used, or where the photographer doesn't want to use a flash because it would spoil the mood. It captures beautiful photos in situations that previously resulted in blurring. The Face Recognition function remembers registered faces to give an appropriate AF/AE on the people. The Intelligent Scene Selector, which automatically selects whichever of 6 Scene modes - Macro, Portrait, Scenery, Night Portrait, Night Scenery and Sunset - that best suits the shooting situation.

With the DMC-FZ100, the Motion Deblur mode* is incorporated to prevent blur even more powerfully. The mode is a comprehensive integration of Intelligent ISO Control which automatically adjusts ISO setting and shutter speed according to the subject's movement and the advanced contrast control system of Intelligent Exposure that also optimizes the exposure to prevent over/under exposure part in a picture. The camera judges the appropriate shutter speed to suppress the motion blur according to the movement of the subject. The shutter speed rises as high as possible activating the high sensitivity recording by pixel mixed readout method.

Plus, the Intelligent Resolution technology is always activated in the iA mode which results in the clearer and higher picture quality in every photo and movie with extended zoom range with the Intelligent Zoom equivalent to 32x optical zoom.

The user can activate all of these useful, convenient shooting-assist functions by simply selecting the iA mode to take beautiful photos and movies with maximum ease.

The Happy mode, a color mode option in the iA mode, optimizes color, saturation and brightness to make both photo and movie more vivid and true to the color of the scene you memorized.

7. Other Features Enhancing the Photographic Experience

The DMC-FZ100 features free-angle 3.0-inch large 460,000-dot high-resolution LCD (which boasts a wide viewing angle) and 0.2-inch 201,600-dot EVF, both with 100% field of view. A large, clear, easy-to-see LCD, that rotates 180° horizontally and 270° vertically to offer even more comfortable view for both monitoring when shooting and for playing back the results.

The 1cm Macro shot is also available to capture subjects with fine detail with the FZ100.

8. Rich Options for Further Expandability

The DMC-FZ100 offers a wide variety of options to choose from to match every shooting situation and shooting style.

Tele Conversion Lens(1.7x): DMW-LT55

Close-up Lens: DMW-LC55

Conversion Lens Adaptor: DMW-LA5 NEW

MC Protector: DMW-MC52

ND Filter: DMW-LND52

PL Filter: DMW-LPL52

External Flash: DMW-FL220(GN22) / DMW-FL360(GN36) / DMW-FL500(GN50)

Stereo Microphone: DMW-MS1

Remote Shutter: DMW-RSL1

Battery Pack: DMW-BMB9

Carrying Case: DMW-CZS100 NEW

Bag:DMW-CZ18

About Included Software PHOTOfunSTUDIO 5.2 HD Edition

The latest version of exciting software PHOTOfunSTUDIO 5.2 HD Edition comes bundled with DMC-FZ100. The PHOTOfunSTUDIO 5.2 HD Edition makes it possible to sort and organize photos not only of those newly taken but also of those stored in your PC. Speeding up its processing time, the Face Recognition function that recognizes the faces in the picture and the software automatically sorts the photos by the registered faces without picking out each photo one by one when you only want pictures of a specific person. The consecutive shots are recognized not one-by-one photo but as a sequence of shots, showing a moving thumbnail in the organization interface. You can also enjoy slideshows with a variety of effects and use your iTunes music library as background music. Motion pictures can be uploaded directly to YouTube using the built-in YouTube uploader even in HD (High Definition) quality. It also lets you create a 360-degree rotation panorama file in MOV, which is especially easy if Panorama Assist mode in the camera is used. Experience and feel the outstanding benefit of the PHOTOfunSTUDIO 5.2 HD Edition. It will surely allow you to view, edit and archive your captured photos and motion pictures with greater ease and fun.

*Leica is a registered trademark of Leica Microsystems IR GmbH.

*The LEICA DC VARIO-ELMARIT lenses are manufactured using measurement instruments and quality assurance systems that have been certified by Leica Camera AG based on the company's quality standards.

*The "AVCHD" is a high definition (HD) digital video recording / playback format jointly established by Panasonic Corporation and Sony Corporation.

*Dolby and the double-D symbol are trademarks of Dolby Laboratories.

*HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

*YouTube is a trademark of Google Inc.

*All other company and product names are trademarks of their respective corporations.

*This unit is compatible with both SD/SDHC/SDXC Memory Cards. You can only use SDHC Memory Cards on devices that are compatible with them. You cannot use SDHC Memory Cards on devices that are only compatible with SD Memory Cards. (When using an SDHC Memory Card on another device, be sure to read the operating instructions for that device.)

*Some accessories are not available in some countries.

*The use of recorded or printed materials that are protected by copyright for any purpose other than personal enjoyment is prohibited, as it would infringe upon the rights of the copyright holder.

*Design and specifications are subject to change without notice.

14.1-Megapixel LUMIX DMC-FT10

Featuring HD Movie Recording and iA(Intelligent Auto) Mode

*35mm camera equivalent: 35-140mm

Panasonic today introduced the new LUMIX DMC-FT10 from the LUMIX's FT series geared for active outdoor use. Featuring the flat and slim profile adopting the folded optics for its 4x optical zoom* lens unit, the new 14.1-megapixel FT10 features credible toughness to be waterproof to 3m, shockproof to 1.5m, freezeproof to -10 degrees C and dustproof.

Panasonic's world-acclaimed iA (Intelligent Auto) mode makes it easy for anyone to take beautiful photos by various shooting-assist functions. It comprehends MEGA O.I.S. (Optical Image Stabilizer) for hand-shake, Intelligent ISO Control for subject movement, Face Detection and Intelligent Scene Selector. The dedicated iA button on the top of the camera lets you enter the iA mode directly. Once you enter the iA mode, these multi-capable functions happen automatically, so you can shoot without the bother of adjusting settings every time conditions change. You can enjoy easy, trouble-free shooting in any situation and get the satisfaction that comes with capturing clear, beautiful images.

With the DMC-FT10, HD (High Definition) movie recording in 720p Motion JPEG is available. The high performance DMC-FT10 excels in the powerful battery life as long as 300 pictures per a single charge (CIPA) despite its slim, compact body. The 2.7-inch large Intelligent LCD with AR coating assures high visibility of photo and movies both in shooting and playing back the images.

Enjoy casual photo and video shooting with tremendous ease stylishly in town and actively in outdoor adventures - the FT10 suits both situations.

*Equivalent to 35-140mm on a 35mm camera.

1. A Credible Toughness in a Slim, Stylish Profile with 4x Optical Zoom in Folded Optics

The DMC-FT10 features a high-quality 4x optical zoom LUMIX DC Lens (35-140mm*). The folded optics of the shaft guide method is adopted to secure the toughness of the lens unit. Comprising 11 elements and a prism unit in 10 groups, including an ED lens and 4 aspherical lenses with 7 aspherical surfaces, this advanced lens unit renders high resolution image corner to corner even adopting the folded optics. Further, in 3-megapixel resolution mode, the Extra Optical Zoom function provides additional magnification, extending the zoom power to 8.4x (294mm*) by using the center part of the high resolution CCD to bring subjects even closer.

Despite its flat and futuristic profile, the DMC-FT10 is waterproof to a depth of 3m and dustproof equivalent to the "IPX8" and "IP6X" standard. Thanks to rubber padding and reinforced glass and carbon resins inside the camera, the FT10 features an airtight body protected against water immersion, dust and sand.

The FT10 is drop proof from a height up to 1.5m in accordance with the "MIL-STD 810F Method516.5-Shock" test standard. In addition to reinforcing the exterior of the camera with shock-resistant material, the FT10 uses folded optics to prevent its lens unit from taking damage when dropped during operation. The lens unit is protected by a supplementary damper to absorb the force from shock impact. All components including the lens unit are reexamined to endure the temperature as low as -10 degrees C to make the FT10 freezeproof.

*Equivalent to 35-140mm on a 35mm camera.

2. The iA (Intelligent Auto) Mode for Making Every Photographer to Be a Good Photographer

Panasonic incorporated the Intelligent Auto mode in pursuit of the ultimate ease of operation and the reduction of misshots. The MEGA O.I.S. suppresses hand-shake and the Intelligent ISO control prevents moving subject from being blurred by optimizing the shutter speed and ISO sensitivity setting, to render sharp, clear images whatever the shooting situation is. Human faces are captured in focus and appropriate exposure with the Face Detection. Unwanted red-eyes are digitally corrected and backlight compensation automatically activates if they happen. Intelligent Scene Selector, which automatically selects whichever of 6 Scene Modes -- Macro, Portrait, Scenery, Night Portrait, Night Scenery and Sunset -- that best suits the shooting situation. The Quick AF system allows the camera to keep focus on the subject while the camera is in recording mode even before pressing a shutter button halfway, to get the best result out of a shutter chance because the focus is always near the subject and the AF time is minimized.

The user can activate all of these useful, convenient shooting-assist functions by simply pressing an dedicated iA button on the top of the camera. All these make the FT10 the ultimate, super-versatile automatic camera for capturing clear, beautiful, mistake-free photos with ease.

3. Exciting Options to Expand the Fun of Photography in the High-Definition Era

The new DMC-FT10 records dynamic HD movie in 1280 x 720p Motion JPEG at a smooth 30 fps, in addition to WVGA (848 x 480) and normal VGA (640 x 480). You can enjoy recording not only photos but also HD movies casually even in active outdoor situations. It is also possible to edit it or upload it on YouTube with the included software PHOTOfunSTUDIO ver. 5.0.

·Use a card with SD Speed Class* with "Class 6" or higher when recording motion pictures.

*SD speed class is the speed standard regarding continuous writing.

·Motion pictures can be recorded continuously for up to 15 min in European PAL area.

·Motion picture recorded continuously in [MOTION JPEG] is up to 2 GB. Only the maximum recordable time for 2 GB is displayed on the screen.

·SDHC Memory Cards and SDXC Memory Cards can be used only in equipment that is compatible with their respective formats.

·If the computer being used does not support SDXC Memory Cards, a message prompting you to format may appear. (Doing so will cause recorded images to be erased so do not choose to format.) If the card is not recognized, please refer to the below support site.

http://panasonic.net/avc/sdcard/information/SDXC.html

4. High Speed Response of the Image Processing LSI the Venus Engine IV

The image-processing LSI, Venus Engine IV, features advanced signal processing technology for rendering high-quality images. Featured in the DMC-FT10, the multi-task image-processing engine Venus Engine IV supports a super-fast response time. The shutter release time lag is as short as approx. 0.006 second. The camera's quick response makes it easier to capture sudden, spur-of-the-moment photo opportunities together with the Sonic Speed AF (Auto Focus).

The Venus Engine IV also supports a High Sensitivity mode that lets the DMC-FT10 record at a setting of up to ISO 6400, sensitive enough to capture subjects in near-total darkness without using a flash.*

Despite its outstanding performance and the slim profile, the engine is also superior in its energy efficiency to feature a long battery life up to 300 shots (CIPA) per a single charge.

*In 3-megapixel (4:3), 2.5-megapixel (3:2), 2-megapixel (16:9) recording.

5. Easy-to-see 2.7-inch Large Intelligent LCD with AR Coating

The DMC-FT10 incorporates an easy-to-see, 2.7-inch 230,000-dot Intelligent LCD for comfortable viewing while both monitoring shots and playing back the results. The Intelligent LCD function detects the light condition and automatically boosts the LCD backlighting by max. 40% when shooting outdoors in bright sunshine, and adjusts the frame rate when shooting in low-lit situations in addition to using the pixel mixed readout method to secure clarity in such situations. Detecting the lighting condition precisely and automatically controlling the brightness with a total of 11 fine steps, this function gives the display the most appropriate clarity in any situation without using extra energy. The High-angle mode makes the LCD screen extremely easy to view when the camera is held high, such as when shooting over a crowd. Plus, the AR coating suppresses reflections even under the strong sunlight.

6. Other Features Enhancing the Ease and Joy of Photography

A rich variety of scene modes make it easy to get beautiful photos in a range of photographic situations. The Beach & Surf mode is perfect for your beach activities, allowing you to use a single mode with optimized auto white balance both on the beach and in shallow water up to 3m. Baby, Pet and Sports modes take advantage of the Intelligent ISO Control as previously described, to let you get great results even if the subjects have unexpected motion. Furthermore, you can record the name and birthday of your children or pet and embed the information of the name and at which age in year and month the photo was taken on the photo, and choose to print either or both of them on the photo. Photo Frame mode lets the user put attractive borders around the photo. When printed, the photos look like postcards in picture frames.

The functions and settings used most often, such as O.I.S., consecutive shooting, auto focus point, white balance adjustment, ISO level, image size and LCD mode are quickly and easily accessed via the Quick Setting function. There's no need to open menus to adjust them.

The user can select from among several pretty icons for the camera to use for indicating when the subject is in focus. With the My Scene setting, the user can assign a specific Scene Modes to that setting, and switch instantly to the mode when desired.

Using the Macro Zoom function, the user can pull subjects even closer than the closest point possible with the wide-angle setting by using 3x digital zoom, and capture dramatic close-ups.

In addition to the conventional SD/SDHC Memory Card, the DMC-FT10 accepts next-generation SD format SDXC (SD eXtended Capacity), that features high potential in both capacity and data transfer speed. There is no need of worry about scratching if the included silicone jacket is worn.

About Included Software PHOTOfunSTUDIO 5.0

The exciting, multi-functional software PHOTOfunSTUDIO 5.0 comes bundled with DMC-FT10. With quick start-up and fast read-in of images, the PHOTOfunSTUDIO 5.0 makes it possible to sort and organize photos not only of those newly taken but also of those stored in your PC. The Face Recognition function that recognizes the faces in the picture automatically sorts the photos by the registered faces without picking out each photo one by one when you only want pictures of a specific person. You can also enjoy slideshows with a variety of effects and use your iTunes music library as background music. Motion pictures can be uploaded directly to YouTube using the built-in YouTube uploader even in HD (High Definition) quality. The new PHOTOfunSTUDIO 5.0 also lets you create a 360-degree rotation panorama file in MOV.

Experience and feel the outstanding benefit of the PHOTOfunSTUDIO 5.0. It will surely allow you to view, edit and archive your captured photos and motion pictures with greater ease and fun.

*Windows and the Windows logo are trademarks of the Microsoft group of companies.

*All other company and product names are trademarks of their respective corporations.

*The use of recorded or printed materials that are protected by copyright for any purpose other than personal enjoyment is prohibited, as it would infringe upon the rights of the copyright holder.

*Design and specifications are subject to change without notice.

About Waterproof / Dustproof performance of the camera

This camera's waterproof/dustproof rating complies with the "IPX8" and "IP6X" ratings. Provided the care and maintenance guidelines described as following are strictly followed, this camera can operate underwater, to a depth not exceeding 3m(10FT) for a time not exceeding 60 minutes. This does not guarantee no destruction, no malfunction, or waterproofing in all conditions.

- Attention -

Cleaning the rubber seal site (Around the card/battery door, terminal cover)

If any foreign material (hair, sand, dust, liquid, etc.) is present on the rubber seal or the area where the rubber seal sits, water can leak into the camera within a few seconds and cause malfunction.

If there is any foreign material, remove with supplied brush.

- Be careful not to let foreign material get into the camera when cleaning it.

- Pay extra attention when removing fine sand or wet sand.

- Foreign material will adhere to the grooves on the side of rubber seal or its four corners. Remove with the brush.

Handling of the brush

- Prior to use, check that no foreign material etc. is present.

- After use, shake any adhered foreign material etc. off.

To prevent water leak, take care not to nip any foreign objects, and close it by pressing until it clicks. Use the camera underwater up to 3m (10FT) depth, water temperature from 0°C to 40°C, and not longer than 60 minutes continuously. Do not leave the camera under low temperature in the cold climate, or where it has high temperature above 40°C for long period of time. (Waterproof performance will degrade.) Do not use chemicals, such as benzene, thinner, or alcohol, soap, detergents. If it was used in the sea, soak the camera in fresh water a shallow container of for 10 minutes or less. Do not leave the camera uncared for more than 60 minutes after using it underwater. It may cause deterioration of the waterproof performance. To keep the waterproof performance, it is recommended to replace the waterproof seal (with fee) at least once every 1 year at the retail store where you have bought the camera. If the zoom button or Power Button is not operating correctly, shake the camera well in fresh water to wash off any foreign objects.

[PRECAUTIONS] is displayed when the power is turned on for the first time after purchase.

Please check beforehand to maintain the waterproof performance.

About Shockproof performance of the camera

The camera complies with "MIL-STD 810F (Method 516.5-Shock).

The camera has cleared a drop test from a height of 1.5m onto 3cm thick plywood. In most cases, the camera should not sustain any

damage if dropped from a height of 1.5 m or less.*

* This is not a guarantee of no breakdowns, no malfunctions, or complete waterproofing under all conditions.

About Freezeproof performance of the camera

The performance of the battery (number of recordable pictures/operating time) may decrease temporarily when using in a temperature between -10?to0?( 14?F to 32?F) (at the cold climate such as ski resort).

If the camera gets cold in a cold environment, performance of the LCD monitor may temporarily drop immediately after turning the power on, such as the picture on the LCD monitor being slightly darker than usual or ghost images appearing. Keep the camera warm when using in a cold environment. The performance will resume to normal when the internal temperature rises.

When using the camera in a cold place such as a ski resort, if the camera is left with snow or water drops still on it, the snow or water drops in-between the zoom button, Power button may freeze, making it difficult for some parts of the camera to function properly.

This is not a malfunction. When the camera returns to normal temperature it will function normal. It is recommended to use the camera while keeping it warm in the coat etc.

There is no guarantee of not breaking or malfunctioning under all conditions.

With F2.2 Super Bright 24mm Ultra Wide Angle LEICA DC VARIO-SUMMICRON Lens*

Featuring 1920x1080 Full HD Movie Recording in AVCHD

*35mm camera equivalent: 24-120mm

Panasonic is pleased to announce a new addition of DMC-FX700 to the LUMIX popular FX series, that packs a host of advanced functions in a slim, stylish body. The DMC-FX700 is now truly a hybrid camera that records high quality 1920x1080 full HD movie in AVCHD. The 14.1-megapixel DMC-FX700 also features F2.2 super bright 24mm ultra wide angle LEICA DC VARIO-SUMMICRON lens with 5x optical zoom* to make the camera even more versatile from shooting dynamic landscapes to the moving subject in low-lit situations such as indoors or at night.

The iA (Intelligent Auto) mode - an advancing hallmark of LUMIX - now comprehends Motion Deblur mode** and Intelligent Burst mode. The Motion Deblur mode is available by updating the motion detection (Intelligent ISO Control) and brightness control (Intelligent Exposure) to gain as high shutter speed as possible. Combined with the outstanding brightness of the lens and the POWER O.I.S. (Optical Image Stabilizer), the DMC-FX700 thoroughly prevents any kind of blur - whether the blur is caused by a handshake or the subject's motion. The new Intelligent Burst mode determines the frame rate in the burst shooting according to the speed of subject’s motion. The POWER O.I.S., Face Recognition, Face Detection, AF Tracking, Intelligent ISO Control, Intelligent Scene Selector and Intelligent Exposure work appropriately just by entering the iA mode for any user to take beautiful photos with maximum ease.

To realize a high speed and accurate image processing, both the image sensor and the image processing LSI is re-engineered. The new 14.1-megapixel MOS sensor achieves high speed consecutive shooting and full HD movie recording with high resolution and high sensitivity.

And the new image processing LSI, the Venus Engine FHD, assures high picture quality in both photo and movie recording. It also compiles the Intelligent Resolution technology to perform the optimum signal processing depending on the part of a picture to give a whole image outstandingly natural clearness with fine details. The powerful 5x optical zoom* increases its power to 6.5x equivalent with the Intelligent Zoom function taking advantage of the Intelligent Resolution technology maintaining the picture quality even using digital zoom. The Sonic Speed AF and a quick start-up time gives the DMC-FX700 super high speed response that helps to catch even the most fleeting photo opportunities.

Now the 3.0-inch large Intelligent LCD offers full touch control and easy view both in shooting and playing back images. You can not only set the menu or the focus on the intended subject but also release the shutter subsequently. For advanced creative freedom, A/S/M mode is available to set shutter speed and aperture that best express the photographer’s intention.

Despite its compact, slim and stylish look, the DMC-FX700 offers versatile ways of recording memories not only in beautiful photo but also in high quality movie with ultimate ease of operation.

*Equivalent to 35mm camera: 24-120mm.

**The picture size may be reduced.

1. The Super Bright F2.2 LEICA DC VARIO-SUMMICRON Lens with 24mm Ultra Wide-Angle and 5x Optical Zoom

The DMC-FX700 packages a high quality LEICA DC VARIO-SUMMICRON lens that boasts an astonishing brightness of F2.2, extraordinary for a slim, stylish digital compact cameras. The F2.2 lens is about 1.6x brighter than the F2.8 lens, itself generally considered a bright lens. It lets DMC-FX700 shoot at higher shutter speed and capture stunningly clear, sharp, blur-free images in lower lighting situation. Together with the anti-blurring function in the iA mode, DMC-FX700 never allows any subject to be blurred. This advanced lens also makes it easy to produce beautiful photos with pleasing soft background focusing thanks to the shallow depth of field provided by the extra light.

Also, the 24mm ultra-wide-angle lens - rare on a compact camera - gives photographers a wider range of composition possibilities with approx. 213% larger viewing space compared to that of 35mm camera. The super-high-quality LEICA DC VARIO-SUMMICRON lens minimizes distortion at the wide end.

The lens unit consists of 7 elements in 6 groups with 3 aspherical lenses with 5 aspherical surfaces. In addition to the 0.3mm super thin aspherical lens and 0.3mm thin spherical lens, another aspherical lens is designed to be as thin as 0.4mm, which results in the realization of F2.2 brightness and 24mm ultra wide angle of view at the same time. This advanced lens unit passes Leica's stringent standards and delivers an exceptional optical performance with its minimal distortion and chromatic aberrations while suppressing ghosting and flaring.

Thanks to the Intelligent Resolution technology, the Intelligent Zoom is available with the DMC-FX700 which extends the zoom ratio by approx. 1.3x maintaining the picture quality even using a digital zoom. This means the 5x optical* can virtually extend to 6.5x equivalent. Furthermore, the Extra Optical Zoom function that extends zoom power to 10.5x (at 3-megapixel resolution) by using the center part of the 14.1-megapixel high resolution MOS sensor to bring subjects even closer.

*Equivalent to 35mm camera: 24-120mm.

2. Enjoy 1920x 1080 Full HD Movie Recording in AVCHD with the Advanced iA (Intelligent Auto) Mode

According to the rise of movie recording popularity, digital cameras are now more compatible with it. The DMC-FX700, the top-end model of the FX series, has recording capability of AVCHD movie even in 1920x1080 full HD despite its slim, stylish body. The AVCHD format features almost doubling the recording time in HD quality compared with the conventional Motion JPEG. The picture quality is greatly enhanced thanks to the Intelligent Resolution technology. The DMC-FX700 also boasts Dolby Digital Stereo Creator to record high quality audio.

Now on the DMC-FX700, the popular iA (Intelligent Auto) is also available in motion image recording. The AF Tracking function that can lock onto the subject to keep it in focus even it moves is now available in movie recording, too. The POWER O.I.S. (Optical Image Stabilizer), Face Detection, and Intelligent Scene Selector also support shooting beautiful movie with ease. The Intelligent Scene Selector automatically switches between Normal, Portrait, Macro, Scenery, and Low Light modes according to the situation to optimize visual quality. The Intelligent Exposure that also optimizes the exposure to prevent over/under exposure part from occurring.

The 5x optical zoom is available in movie recording, too. With the Video Divide function, users can divide the video into two sections to shorten or delete the unwanted part on the spot in the camera. You can cut out a clear still image from a movie in the camera thanks to the Intelligent Resolution technology. A Wind Cut function is also available to block out most of the noise from background wind. A host of options enhances the usability and fun of recording high quality full HD movie.

·Motion images can be recorded continuously for up to 29min 59 sec in European PAL areas

·Continuous recording exceeding 2GB is not possible when recording motion JPEG. Remaining time for continuous recording is displayed on the screen.

·Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures in [AVCHD]. Also, use a card with SD Speed Class with "Class 6" or higher when recording motion pictures in [MOTION JPEG].

*SD Speed Class is the speed standard regarding continuous writing.

3. Newly Developed 14.1-Megapixel MOS Sensor Pursuing Even Higher Level in Resolution, Sensitivity and Speed

To realize the 1920x1080 full HD movie recording with high image quality, the new 14.1-megapixel MOS sensor is developed for DMC-FX700. For the effective concentration of light, the newly developed sensor adopts microfabrication technology to achieve even higher sensitivity. With an advanced micro light tube structure, both color mixture and signal loss are prevented. The result is that the photo and movie shot at any sensitivity from low to high have outstanding clearness.

The high speed digital signal output technology integrated in the DMC-GH1 is applied also to the DMC-FX700 realizing the high speed consecutive shooting and full HD movie recording. It lets the DMC-FX700 to shoot 10 fps in 14-megapixel full resolution with mechanical shutter and 5 fps / 2 fps with continuous AF. Even higher speed burst shooting is available with DMC-FX700 if electronic shutter is used- 60 fps in 3.5-megapixel*. The frame rate, AF setting and the recording resolution can be easily selected according to the movement of the subject.

On the other hand, the newly added Intelligent Burst mode adjusts the frame rate of burst shooting according to the speed of the subject’s movement. If the movement of the subject is not so fast, the camera shoot is at regular frame rate and it moves fast, the camera increases it accordingly.

*In the high speed burst shooting at 60 fps, the picture size is 3.5-megapixel(16:9), 3-megapixel(3:2), 2.5-megapixel(4:3) or 2-megapixel(1:1)

4. Redesigned Venus Engine FHD with Even Higher Signal Processing Performance

For the image processor, the new Venus Engine FHD is incorporated that features exceptionally advanced signal processing capabilities. By separating chromatic noise from luminance noise and applying the optimal noise reduction to each, so you can capture clear and beautiful images even when shooting at high ISO sensitivity levels. The Venus Engine FHD also provides precisely selective noise reduction to the chromatic noise without affecting the border of colors which is judged from the brightness level of a pixel. The Intelligent Resolution technology is another feature of the Venus Engine FHD. With the Intelligent Resolution technology, 3 areas - outlines, detailed texture areas and soft gradation areas are automatically detected. The outline parts are enhanced effectively to give edges more clearness while giving a moderate accentuation to the texture areas to look more finely detailed. To the soft gradation part, superior noise reduction system of the Venus Engine FHD is applied to make it smoother. Apart from the uniform enhancement of sharpness, the innovative technology Intelligent Resolution precisely performs signal processing pixel by pixel in the most effective way for it. As a result, images are naturally clear and crisp in both photo and movie recording. The Intelligent Resolution technology also realizes Intelligent Zoom, which virtually extends the optical zoom ratio to its approx. 1.3x equivalent maintaining the picture quality even combining the digital zoom. Details of an image in high sensitivity recording tend to be lost in the noise reduction process; however, the Intelligent Resolution works to keep them. Linking smoothly with the MOS sensor, the Venus Engine FHD processes a large amount of signal at high speed, making it possible to record high resolution consecutive shots and full HD movie recording.

At the same time, the multi-task image-processing engine, the Venus Engine FHD realizes a super-fast response time. The shutter release time lag is as short as approx. 0.008 second and the camera's quick response makes it easier to capture sudden, spur-of-the-moment photo opportunities together with the Sonic Speed AF (Auto Focus). The high performance Venus Engine FHD is also more energy efficient despite its high processing task, assuring the battery life up to 300 shots (CIPA) per a single charge.

5. The Evolving iA (Intelligent Auto) Mode Makes Every Photo Blur-less

Panasonic incorporated the Intelligent Auto mode in pursuit of the ultimate ease of operation and the reduction of misshots. In the iA mode, the camera does all the work, leaving you free to compose shots and capture moments. Just press, aim and shoot.

With the DMC-FX700, the Motion Deblur mode* is incorporated to prevent blur even more powerfully. The mode is a comprehensive integration of Intelligent ISO Control which automatically adjusts ISO setting and shutter speed according to the subject's movement and the advanced contrast control system of Intelligent Exposure that also optimizes the exposure to prevent over/under exposure part in a picture. The camera judges the appropriate shutter speed to suppress the motion blur according to the movement of the subject. The shutter speed rises as high as possible activating the high sensitivity recording by pixel mixed readout method. Combined with the outstanding brightness of the lens and the POWER O.I.S., the DMC-FX700 thoroughly prevents any kind of blur - whether out of handshake or the subject's motion.

The newly added Intelligent Burst mode adjusts the frame rate of burst shooting according to the speed of the subject’s movement. If the movement of the subject is not so fast, the camera shoot is at regular frame rate and it moves fast, the camera increases it accordingly.

Not only those, the Face Recognition function remembers registered faces to give an appropriate AF/AE on the people while removing the unwanted red-eye. The Intelligent Scene Selector automatically selects whichever of 6 Scene modes - Macro, Portrait, Scenery, Night Portrait, Night Scenery and Sunset - that best suits the shooting situation.

In addition, the Intelligent Resolution technology is always activated in the iA mode which results in the clearer and higher picture quality in every photo and movie with extended zoom range equivalent to 6.5x optical zoom by the Intelligent Zoom.

Once you enter the iA mode, these functions happen automatically together with other powerful shooting-assist functions - AF Tracking, Intelligent ISO Control and Intelligent Exposure - so you can shoot without the bother of adjusting settings every time conditions change. You can enjoy easy, trouble-free shooting in any situation and get the satisfaction that comes with capturing clear, beautiful images.

The Happy mode, a color mode option in the iA mode, optimizes color, saturation and brightness to make both photos and movies more vivid and true to the color of the scene you memorized.

*The picture size may be reduced.

6. The Intuitive Touch-Control Shooting on the Large, Easy-to-see LCD

The DMC-FX700 adopts full touch-screen operation. AF is immediately set to the subject by just touching it on the 3.0-inch large, 230,000-dot LCD and you can even release the shutter. Zooming is also controlled with touch operation.

Once you lock on the subject by a touch, the camera tracks the subject with the AF tracking function even if it moves. With the Intelligent Scene Selector in the iA mode, the camera automatically switches to the appropriate mode according to the subject touched. For example, a touch on a human face switches to the Portrait mode and a touch on the background or scenery to the Scenery mode while a touch on the subject close to the camera to the Macro mode. All menu setting is now available with touch control. In the shooting screen you can directly touch the icon to change its setting quickly. The touch-screen operation excels not only for shooting but also for playing back images with outstanding visibility. You can play back the image you want out of hundreds of stocks by touching in the thumbnails. To play back images one by one in order, you can drag the image over the screen with a finger to browse the collection of photos as you flip over the pages of the book. Max. 16x of enlargement is also operated easily with touches.

The screen brightness automatically adjusts in 11 steps as the surrounding brightness level changes, ensuring easy visibility at all times. The 3.0-inch large screen reflects fine details, making it easy to check the focus before shooting. It also serves as a small photo and video viewer, allowing the user and friends to enjoy viewing the still and motion images together.

7. Other Versatile Functions Adding to the Photographic Enjoyment

Although the DMC-FX700 with the iA mode is the camera for every stage of users to be able to take beautiful shots with, it also features manual control for advanced expressive photo shooting. It has A (Aperture Priority) / S (Shutter Speed Priority) / M (Manual Exposure) modes for step up users to enjoy the creative shots depending on the subject or the scene by controlling the shutter speed and aperture. All control is possible via the touch-screen.

Taking advantage of a high speed MOS sensor, newly added Handheld Night Shot mode shoots consecutive 10 shots to simulate over one picture detecting and fixing the position of the subjects. With a short shutter speed, exposure is accumulated while noise is averaged, to produce a blur-less, beautifully illuminated night shot even without using a tripod.

The 1:1 square format is available for photo recording in addition to the conventional aspect ratios of 4:3, 3:2 and 16:9.

About Included Software PHOTOfunSTUDIO 5.2 HD Edition

The latest version of exciting software PHOTOfunSTUDIO 5.2 HD Edition comes bundled with DMC-FX700. The PHOTOfunSTUDIO 5.2 HD Edition makes it possible to sort and organize photos not only of those newly taken but also of those stored in your PC. Speeding up its processing time, the Face Recognition function that recognizes the faces in the picture and the software automatically sort the photos by the registered faces without picking out each photo one by one when you only want pictures of a specific person. The consecutive shots are recognized not one-by-one photo but as a sequence of shots, showing a moving thumbnail in the organization interface. You can also enjoy slideshows with a variety of effects and use your iTunes music library as background music. Motion pictures can be uploaded directly to YouTube using the built-in YouTube uploader even in HD (High Definition) quality. It also lets you create a 360-degree rotation panorama file in MOV, which is especially easy if Panorama Assist mode in the camera is used. Experience and feel the outstanding benefit of the PHOTOfunSTUDIO 5.2 HD Edition. It will surely allow you to view, edit and archive your captured photos and motion pictures with greater ease and fun.

*Leica is a registered trademark of Leica Microsystems IR GmbH.

*The LEICA DC VARIO-SUMMICRON lenses are manufactured using measurement instruments and quality assurance systems that have been certified by Leica Camera AG based on the company's quality standards.

*The "AVCHD" is a high definition (HD) digital video recording / playback format jointly established by Panasonic Corporation and Sony Corporation.

*Dolby and the double-D symbol are trademarks of Dolby Laboratories.

*HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

*YouTube is a trademark of Google Inc.

*All other company and product names are trademarks of their respective corporations.

*This unit is compatible with both SD/SDHC/SDXC Memory Cards. You can only use SDHC Memory Cards on devices that are compatible with them. You cannot use SDHC Memory Cards on devices that are only compatible with SD Memory Cards. (When using an SDHC Memory Card on another device, be sure to read the operating instructions for that device.)

*Some accessories are not available in some countries.

*The use of recorded or printed materials that are protected by copyright for any purpose other than personal enjoyment is prohibited, as it would infringe upon the rights of the copyright holder.

*Design and specifications are subject to change without notice.

Metrics		Dimensions (W x H x D)	124.3 x 81.2 x 95.2 mm (4.89 x 3.20 x 3.74 in )
		Weight	Approx. 540g with Battery and SD Memory Card (1.19 lb) Approx. 496g without Battery and SD Memory Card (1.09 lb)
Optics	Pixels	Camera Effective Pixels	14.1 Megapixels MOS
	MOS	Sensor Size / Total Pixels / Filter	1/2.33-inch / 15.1 Total Megapixels / Primary Color Filter
	Lens	Aperture	F2.8 - 5.2 / Multistage Iris Diaphragm (F2.8 - 8 (W) / F5.2 - 8 (T)) (F2.8 - 11 (W) / F5.2 - 11 (T) in movie recording )
		Optical Zoom	24x
		Focal Length	f=4.5-108mm (25-600mm in 35mm equiv.) (31-735mm in 35mm equiv. in movie recording)
		Extra Optical Zoom (EZ)	28.4x (4:3 / 10M), 33.8x (4:3 / 7M), 40.5x (4:3 / 5M), 50.6x (under 3M)
		Intelligent Zoom	32x
		Lens	LEICA DC VARIO-ELMARIT 14 elements in 10 groups (2 Aspherical Lenses / 3 Aspherical surfaces / 3 ED Lenses)
		2-Speed Zoom	Yes
		Optical Image Stabilizer	POWER O.I.S. (Off / Auto / Mode1 / Mode2)
		Conversion lens Compatibility	Yes
		Digital Zoom	4x ( Max. 96.0 x combined with Optical Zoom without Extra Optical Zoom ) (Max. 202 x combined with Extra Optical Zoom)
	Focus	Focusing Area	Normal: Wide 30 cm - infinity / Tele 200 cm - infinity Macro AF / MF / Intelligent AUTO:  Wide 1 cm - infinity / Tele 100cm - infinity
		Focus Range Display	Yes
		AF Assist Lamp	Yes
		Focus	Normal / Macro, Quick AF On/Off (On in Intelligent Auto), Continuous AF On/Off AF/MF Switchable, Manual Focus(Jog dial and cursor key button), One Shot AF, AF Area Select, AF Tracking
		AF Metering	Face / AF Tracking / Multi (23pt) / 1pt (flexible / scalable)
	Shutter	Shutter Speed	Still: 60 - 1/2000 sec Movie Mode : 1/30 - 1/20,000 sec (1/8 - 1/20,000 sec on MF operation on Creative Movie mode) Starry Sky Mode : 15, 30, 60sec.
		Shutter Interval	approx. 0.4 sec
	Finder	Viewfinder	0.20" Color EVF (201.6K Pixels equiv.), Field of View : approx. 100%, Lens 19.6x
Recording	iA	Face Recognition	Photo
		Optical Image Stabilizer	Photo & Movie
		Intelligent ISO Control	Photo
		Face Detection	Photo & Movie
		Intelligent Scene Selector	Photo (Portrait, Scenery, Night Portrait, Night Scenery, Sunset, Macro) & Movie (Portrait, Scenery, Low Light, Macro)
		Intelligent Exposure	Photo & Movie
		AF Tracking	Photo
		Motion Deblur mode	Yes
		Digital Red Eye Correction (Red-Eye Removal)	Photo
		Intelligent Resolution Technology	Photo & Movie
	File	File Format	Still Image: JPEG(DCF/Exif2.3) Motion picture: AVCHD, QuickTime Motion JPEG
		AVCHD REC	NTSC / PAL (Depends on Region)
	Interface	Mode Switch	[Playback] button
		One-Touch Movie Button	Yes
	Recording Modes	Recording mode (Mode Dial / Mode Button)	Intelligent AUTO, P(Program) mode, A(Aperture Priority) mode, S(Shutter Priority) mode, M(Manual) mode, Creative Movie mode, My Color mode, Portrait mode, Scenery mode, Sports mode, Night Portrait mode, Close-up mode, Scene mode, Custom
		Still Image Scene Mode	Panorama Assist, Party, Candle Light, Baby1, Baby2, Pet, Sunset, High Sensitivity, Flash Burst, Panning, Starry Sky, Fireworks, Beach, Snow, Aerial Photo, Photo Frame, High Speed Movie
		Advanced Scene Mode	Portrait mode     : Normal, Soft Skin, Outdoor, Indoor, Creative Scenery mode    : Normal, Nature, Architecture, Creative Sports mode      : Normal, Outdoor, Indoor, Creative Close-up           : Flower, Food, Objects, Creative Night Portrait     : Night Portrait, Night Scenery, Illuminations, Creative
		Movie Scene Mode	Portrait, Soft Skin, Scenery, Low Light, Food, Party, Candle Light, Sunset, Beach, Snow, High Sensitivity, Panning, Aerial, High Speed Movie (Activated by selecting Still Picture Scene Mode then pressing movie button. Still Picture Scene Modes without corresponding Movie Scene Mode is recorded in Normal Mode)
		Continuous Shooting Mode	Full-Resolution Image, 11 frames/sec  Max. 15 images High-speed Burst Shooting: max. 60 frames/sec (recorded in 2.5M for 4:3, 3M for 3:2, 3.5M for 16:9, 2M for 1:1)
		Flash Burst Continuous Shooting Mode	Max. 5 images (Standard mode)
		Motion Picture Recording	4:3 - VGA: 640 x 480 pixels, 30fps (Motion JPEG)  QVGA: 320 x 240 pixels, 30 fps (Motion JPEG) 16:9 - WVGA: 848 x 480 pixels, 30 fps (Motion JPEG) HD Movie - 1920x1080 pixels, NTSC Mode: NTSC model: 60i / PAL model: 50i (AVCHD, FSH: 17Mbps / FH:13Mbps ) 1280x720 pixels, NTSC Mode: NTSC model: 60p / PAL model: 50p (AVCHD Lite, SH: 17Mbps / H:13Mbps ) / 30fps (Motion JPEG)
	Continuous recordable time(motion pictures)	AVCHD or AVCHD Lite with picture quality set to [FSH or SH]	approx.110 min (FSH), 130 min (SH) *1
		MOTION JPEG with picture quality set to [HD]	approx. 160 min *1
	Actual recordable time(motion pictures)	AVCHD or AVCHD Lite with picture quality set to [FSH or SH]	approx.60 min (FSH), 70 min (SH) *1
		MOTION JPEG with picture quality set to [HD]	approx.90 min *1
	Exposure Parameters	Exposure	Program AE, Aperture Priority AE, Shutter Priority AE, Manual, Program Shift(Program AE mode)
		Exposure Compensation	1/3 EV step, +/-3 EV
		Backlight Compensation	Yes  (only in Intelligent AUTO mode)
		Auto (AE) Bracketing	+/- 1/3 EV ~3EV step, 3 frames
		Light Metering	Intelligent Multiple / Center Weighted / Spot
		ISO Sensitivity	Auto / i.ISO / 100 / 200 / 400 / 800 / 1600 High Sensitivity (ISO 1600-6400)
		Max Auto ISO Setting	Yes
	Image Parameters	Aspect Ratio	4:3 / 3:2 / 16:9 / 1:1
		Still Picture Recording	4:3 - 4320x3240(14M) / 3648x2736(10M) / 3072x2304(7M) / 2560x1920(5M) / 2048X1536(3M)　/ 640X480(0.3M)
			3:2 - 4320x2880 (12.5M) / 3648x2432 (9M) / 3072x2048 (6M) / 2560x1712 (4.5M) / 2048x1360 (2.5M) / 640x424 (0.3M)
			16:9 - 4320x2432 (10.5M) / 3648x2056 (7.5M) / 3072x1728 (5.5M) / 2560x1440 (3.5M) / 1920x1080 (2M) / 640x360 (0.2M)
			1:1 - 3232x3232 (10.5M) / 2736x2736 (7.5M) / 2304x2304 (5.5M) / 1920x1920 (3.5M) / 1536x1536 (2.5M)/ 480x480 (0.2M)
		Image Quality	Fine / Standard / RAW+Fine / RAW+Standard / RAW
		White Balance	Auto / Daylight / Cloudy / Shade / Flash / Halogen / Color Temperature / White Set 1 / White Set 2 (Selectable at Normal Portrait, Soft Skin, Creative Portrait, Normal Sports, Creative Sports, Objects Close-up, Creative Close-up, Baby, Pet, High Sensitivity, Panorama Assist, Photo Frame mode） White Balance Adjustment (2-axis adjustable, ±9steps each, Blue/Amber and Magenta/Green bias)
		Quick Menu	Yes
		Color Mode / Color Effect	(Film Mode) Standard / Dynamic / Nature / Smooth / Vibrant / Nostalgic / Standard B&W / Dynamic B&W / Smooth B&W / My Film 1, 2 / Multi Film (My Color Mode) Expressive /Retro / Pure / Elegant / Monochrome / High Dynamic / Dynamic Art / Dynamic B&W / Silhouette / Pinhole / Film Grain / Custom Happy (only in iA mode) *Film Mode and My Color Mode are working for movie recording, also.
		Picture Adjustment	Contrast   ±2steps Sharpness  ±2steps Saturation   ±2steps Noise Reduction   ±2steps (can be adjusted in Film Mode)
	Others	Real-time histogram	Yes
		Composition Guide line	Yes (2 pattern)
		Auto Review	1sec, 2sec, Hold, OFF
		Zoom Resume	Yes
		Optical Zoom in Motion Picture	Yes
		Macro Zoom	No
		Orientation Detector	Yes
		Scene Mode Help Screen	Yes
		Self Timer	2sec / 10sec / 10sec[3 pictures]
		Focus Icon Select	Yes (in Face Recognition only)
Playback	Display	Playback Mode	Normal Playback, Slideshow, Category Playback, Mode Playback, Favorites Playback
		Thumbnails / Zoomed Playback	12,30-thumbnails / Max 16x
		Calendar Display	Yes
		Set Favorites	Yes
		Playback Motion Picture	Yes ( AVCHD / Motion JPEG)
		Slideshow Mode	All / Still Images Only / Motion Picture Only / Category / Favorites  BGM Effect (Natural / Slow / Swing / Urban / OFF)
		Show Histogram	Yes
		Show Highlights	Yes
	Delete	Delete Image	Single / Multi / All / All except Favorites
		DPOF Print Setting / Set Protection	Yes / Yes
	Edit	Resize / Cropping / Leveling	Yes / Yes / Yes
		Copy / Title Edit / Text Stamp	Yes / Yes / Yes
		Cut Animation	Yes
		Video Divide	Yes
		Face Recognition Edit	Yes
		PictBridge Support	Single / Multi / All / Favorites / DPOF
Setup		OSD language	English,German,French,Italian,Spanish,Polish,Czech,Hungarian,Russian,Chinese(Traditional),Chinese(Simplified), Netherlandic,Thai,Korean,Turkish, Portuguese, Arabic, Persian, Japanese, Swedish, Danish, Finnish,Greek *Varies depending on the sales area.
		Movie REC Guide	Yes
		Wind-Cut in Motion Picture	Yes
		Travel Date / World Time	Yes / Yes
Others	Monitor	LCD Monitor	3.0" Free-Angle TFT Screen LCD Display (460K dots), AR Coating
			Field of View : approx. 100% Wide Viewing Angle
			AUTO Power LCD mode, Power LCD mode
	Flash	Built-in-Flash	Auto, Auto/Red-eye Reduction, Forced On, Slow Sync./Red-eye Reduction, Forced Off, Flash Synchro; 1st / 2nd
			0.3 - 9.5m (Wide/ISO Auto),  1.0 - 5.1m (Tele/ISO Auto)
		External Flash	Yes
	Media	Recording Media	Built-in Memory, SD Memory Card, SDHC Memory Card, SDXC Memory Card
		Built-in-Memory	Approx. 40MB
	Audio	Microphone / Speaker	Stereo / Yes
	Interface	Interface	AV Output (NTSC/PAL, NTSC), mini HDMI, USB2.0 High speed
	Network	Viera Link	Yes
		HDMI output	Video: Auto / 1080i / 720p / 480p(576p for PAL) Audio: Stereo
	Power	Power	ID-Security Li-ion Battery Pack (7.2V, Minimum: 895mAh) (Included)
			AC Adaptor (Input: 110-240V AC) (Optional)
		Battery life  (approx.)	410 pictures (CIPA Standard) *2
	Standard Package	Included Software	PHOTOfunSTUDIO 5.2 HD Edition, SILKYPIX Developer Studio 3.1 SE QuickTime, Adobe Reader
		Standard Accessories	Battery Charger, Battery Pack, AV Cable,
			USB Cable, Shoulder Strap, CD-ROM, Lens hood,
			Lens cap, Lens cap string

*1
• These are standard times taken at a temperature of 23 oC (73.4 oF) and a humidity of 50%.
• The time available for recording varies depending on the environment, the interval between recordings, and the manner of use.
· Actual recordable time is the time available for recording when repeating actions such as switching the power supply [ON] / [OFF], starting/stopping recording, zoom operation etc.
· Motion picture recorded continuously in [MOTION JPEG] is up to 2 GB. Only the maximum recordable time for 2 GB is displayed on the screen.
· Motion pictures can be recorded continuously for up to 29 min 59 sec in European PAL area.

*2
Recording conditions by CIPA standard
· CIPA is an abbreviation of [Camera & Imaging Products Association].
· Temperature: 23 oC (73.4 oF)/Humidity: 50% when LCD monitor is on.
· Using a Panasonic SD Memory Card (32 MB).
· Using the supplied battery.
· Starting recording 30 seconds after the camera is turned on. (When the optical image stabilizer function is set to [AUTO].)
· Recording once every 30 seconds with full flash every second recording.
· Rotating the zoom lever from Tele to Wide or vice versa in every recording.
· Turning the camera off every 10 recordings and leaving it until the temperature of the battery decreases.
· The number of recordable pictures decreases in Auto Power LCD Mode and Power LCD Mode.
