Release Issued by Tamron:
Tamron Announces SP AF70-200mm F/2.8 Di LD (IF) Macro A Lightweight, High Performance And Fast Tele Zoom
For more PMA-related articles:
DPNow PMA show coverage index New Di Lens Features a 37.4” (0.95m) MFD Over the Entire Zoom Range

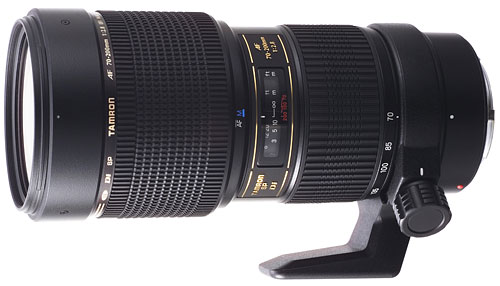

March 8, 2007, PMA 2007, Las Vegas, NV — Mr. Morio Ono, President of Tamron Co., Ltd., has announced the development of the SP AF70-200mm F/2.8 Di LD (IF) MACRO, a lightweight, high-performance and fast tele-zoom lens designed for SLR cameras with full-size image sensors.
The new SP AF70-200mm Di LD (IF) MACRO (Model AA001) is an F/2.8 fast tele-zoom designed for full-size format SLR cameras. It inherits the product concept of the award-winning SP AF28-75mm F/2.8 XR Di (Model A09) standard zoom lens that is highly acclaimed for its compactness and speed, which lets photographers enjoy a high cost to performance uniqueness.
While overall dimensions are confined to the absolute minimum, the new SP AF70-200mm F/2.8 Di LD (IF) MACRO zoom lens is packed with features that allow stress-free photography: a versatile MFD (minimum focusing distance) of just 37.4” (0.95m) over the entire zoom range; an excellent maximum macro magnification ratio of 1:3.1 at f=200mm; and an advantageous internal focusing (IF) system. The new tele-zoom lens covers a desirable focal length range of 70mm medium telephoto to 200mm telephoto when mounted on full-size format SLR cameras and a focal length range from 109mm to 310mm equivalent* ultra telephoto (7°59’ angle of view) when mounted on a DSLR camera with an APS-C sized imager.
(*) The ratio Tamron uses to convert from full size format to APS-C focal length is 1.55X.
MAIN FEATURES
37.4” (0.95m) MFD over the Entire Zoom Range for 1:3.1 Maximum Magnification
Ratio
This zoom lens, designed for use with full-size format SLR cameras, boasts a fast maximum aperture of F/2.8, yet it allows close-focusing down to 37.4” (0.95m) over the entire zoom range for a 1:3.1 maximum magnification ratio. The filter diameter is confined to Ø77mm as a result of the use of an advanced optical design pursuing optimum optical power distribution.
Soft Out-of-Focus Effect and Sharp Depiction
In order to realize soft out-of-focus effect and sharp depiction performance at the same time, the zoom lens uses three LD (low dispersion) elements. As a result, the optical system effectively compensates for lateral and on-axis chromatic aberrations that are major image-degrading factors in telephoto photography, in order to provide edge-to-edge sharpness and high-contrast image quality with flat-field characteristics over the entire zoom range in all photographic situations.
Lightweight, Yet Fast F/2.8 Maximum Aperture
The lens features a fast maximum aperture of F/2.8, yet it weighs a mere 39.2oz. (1,112.6 grams), since it uses barrel parts made of engineering plastic materials having excellent dimensional stability and sufficient strength for professional use and even industrial applications.
Internal Surface Coatings Minimize Ghosting and Flare
Through the use of “Internal Surface Coatings” (i.e., multiple-layer coatings on cemented surfaces of plural elements) and multiple-layer coatings to prevent reflections from lens surfaces, ghosting and flare due to reflections that occur when light enters through the front element as well as reflections caused by the imager itself are reduced to the absolute minimum.
One-touch Focus Ring Switchover Mechanism for AF/MF Switchover (for Canon and Nikon only)
The models for Nikon and Canon cameras are equipped with AF/MF switchover mechanisms to allow one-touch switchover from AF mode to MF mode or vice versa electronically and mechanically by simply sliding the button. (Sony and Pentax systems require AF/MF switchover operation on both the camera and lens). Since the lens uses an IF (internal focusing) system, the focusing ring does not rotate during focusing, which ensures good holding balance at all times. In the MF mode, focusing is performed as easily and comfortably as with an MF lens. Since the overall length of the lens does not change due to zooming or focusing, it offers excellent operability and holding balance.
Detachable Tripod Grip Ring
The lens is supplied with a lightweight and rigid aluminum tripod grip ring that can be mounted or detached in a one-touch action.
Flower-shaped Lens Hood
A flower-shaped lens hood is included as a standard accessory. The special hood provides optimum shading of superfluous light rays that enter from the rectangular frame outside the image field.
Reader feedback:
Discuss this story
Specifications
|
Model Name |
： AA001
| | Focal Length |
： 70-200mm
| | Maximum Aperture |
： F/2.8
| | Angle of View |
： 34°3′ ~ 12°3′
| | Lens Construction |
： 18 elements /13 groups
| | Minimum Focus Distance |
： 37.4 in. (0.95m) throughout the range
| | Maximum Magnification Ratio |
： 1:3.1 (at f=200mm, MFD=0.95m)
| | Filter Diameter |
： Ø77mm
| | Overall Length |
： 7.65 in (194.3mm)*
| | Maximum Diameter |
：Ø3.52 in. (Ø89.5mm)
| | Weight |
： 39.25 oz. (1112.6g)* (without tripod holder)
| | Diaphragm Blades |
： 9 blades
| | Minimum Aperture |
： F/32
| | Standard Accessory |
： Flower-shaped lens hood
| | Compatible Mounts |
： Canon, Nikon, Pentax, Sony
|
*values given are for Nikon AF-D cameras; the cosmetic design and specs are subject to change without notice.
